A4 Size Paper Sheet Cutting And Packing Machine

A4 size paper sheet cutting and packing machine is a traditional product, which is used to deal with the paper cutting needs in the later stage of printing. From the mechanical paper cutting machine to the tape-controlled paper cutter, and to the cutting system of computer program control, color display, full-image operation guidance and visual processing, computer-aided cutting, external programming and editing of production data, the production preparation time is shortened. Shorter, higher cutting precision, lower labor intensity, and safer operation.Full automatic a4 paper cutting and packing machine could cut a3,a4,a5 size sheet from jumbo copy paper rolls and finish packing a4 paper reams automatically.

PRODUCT DETAILS

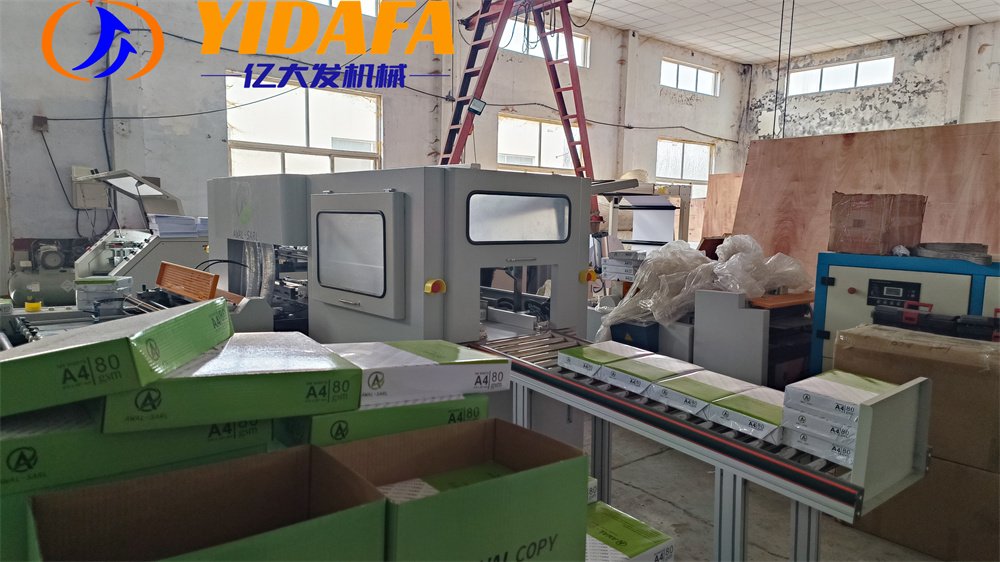

Full automatic a4 paper cutting and packing machine could cut a3,a4,a5 size sheet from jumbo copy paper rolls and finish packing a4 paper reams automatically.

PRODUCT DETAILS

A4 Size Paper Sheet Cutting And Packing Machine


A4 size paper sheet cutting and packing machine is a traditional product, which is used to deal with the paper cutting needs in the later stage of printing. From the mechanical paper cutting machine to the tape-controlled paper cutter, and to the cutting system of computer program control, color display, full-image operation guidance and visual processing, computer-aided cutting, external programming and editing of production data, the production preparation time is shortened. Shorter, higher cutting precision, lower labor intensity, and safer operation.Full automatic a4 paper cutting and packing machine could cut a3,a4,a5 size sheet from jumbo copy paper rolls and finish packing a4 paper reams automatically.

a4 paper making machine

Performance and features:

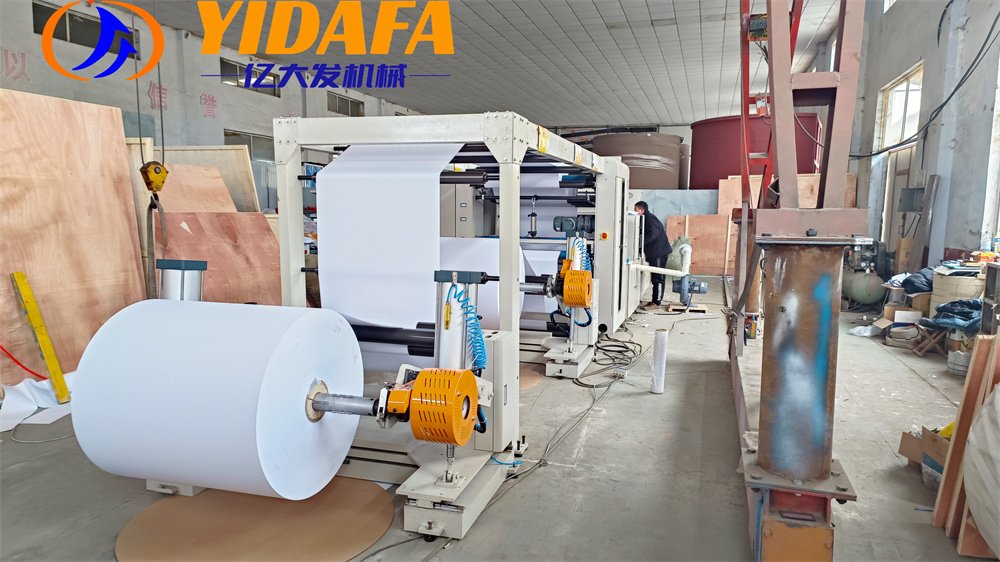

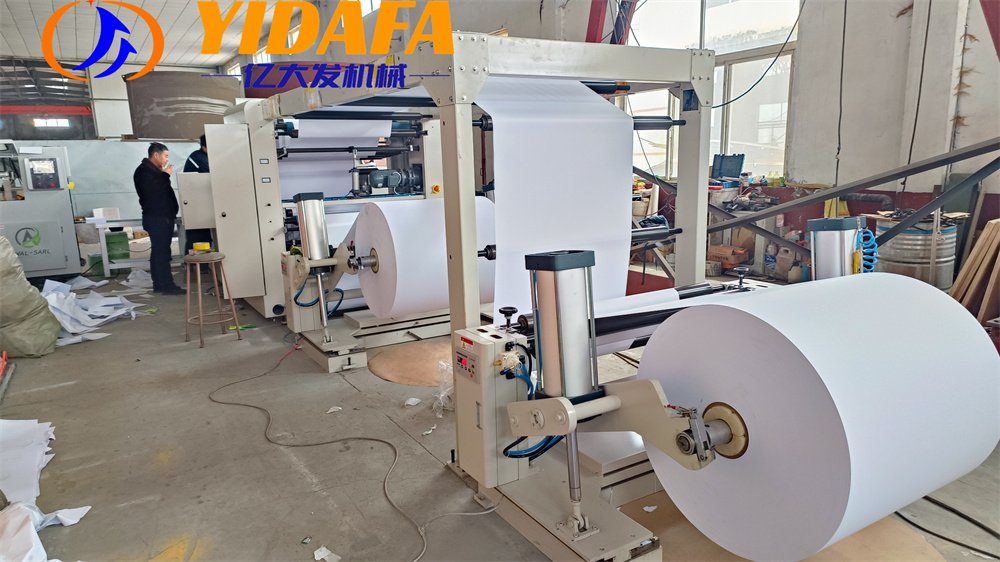

 This machine is suitable for cutting all kinds of paper, self-adhesive, paper-plastic composite, non-woven fabric and other large roll packaging materials. This machine adopts servo motor to control fixed-length cutting. The transmission system adopts centralized control such as pneumatic and photoelectric sensors. This machine integrates light, electricity and gas. It has the advantages of simple operation, high cutting precision, mechanical stability and low noise. Motor frequency conversion speed regulation, automatic counting, alarm stop, magnetic powder taper automatic tension adjustment function. It is an ideal equipment for cutting large-scale paper rolls or coils with high quality in China.

Features:

1. Host frequency conversion speed regulation, Panasonic PLC touch screen control system, automatic counting, automatic fixed length, alarm stop, automatic control and other functions



2. The frame adopts 16mm steel plate structure, the cross-cut knife seat adopts heavy-duty casting structure, and the guide roller adopts dynamic balance processing aluminum alloy guide roller

3. The drive positioning traction adopts the drive shaft structure of the servo system, and the feeding traction mode is that the motor drives the sprocket to drive the traction rubber shaft.

4. This machine is an ideal online cross-cutting equipment with high precision and high speed.

a4 paper making machine

a4 paper making machine

a4 paper making machine

a4 paper making machine

a4 paper machine

a4 paper manufacturing machine

model

YDF-1100

raw material maximum diameter

1400mm

cutting width

1100mm

cut length

297mm

cutting speed

20-150times/min

Horizontal precision

±0.2mm

total power

11kw

machine weight

5000kg

Dimensions (L×W×H)

9200×2210×2000mm
