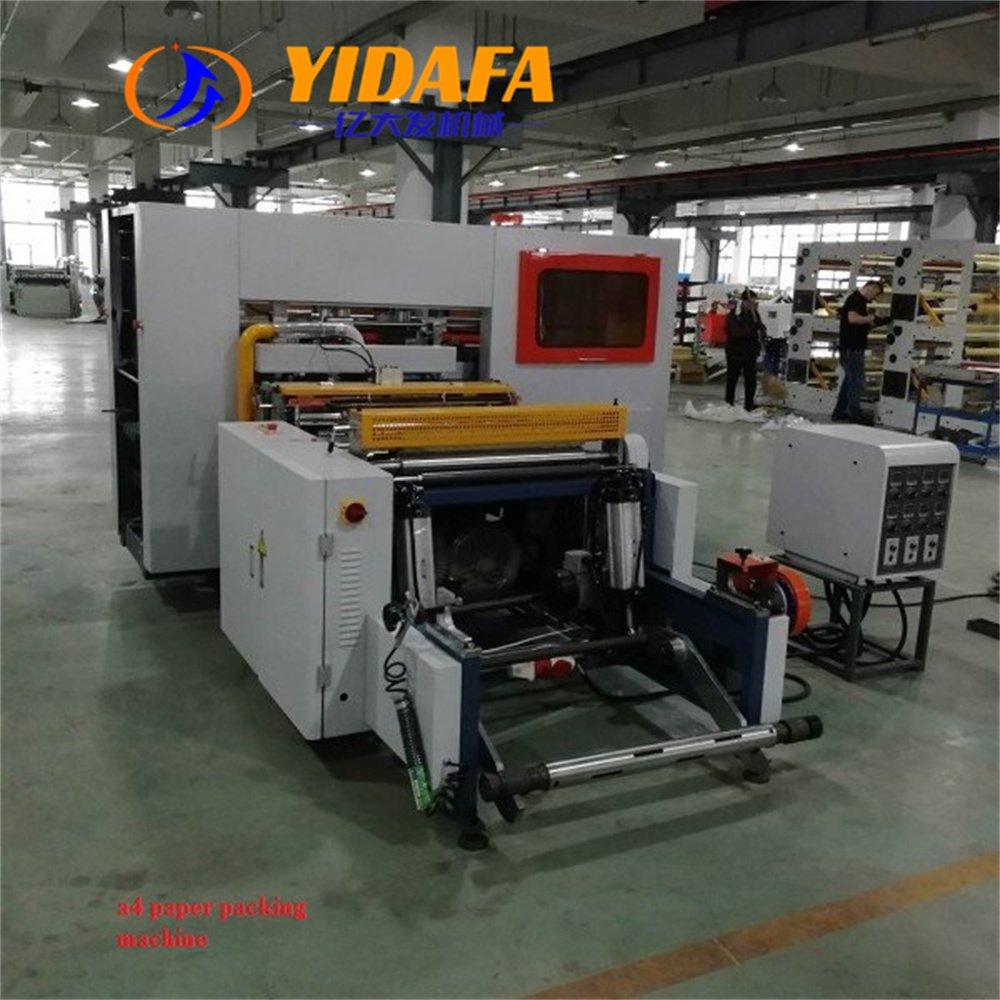

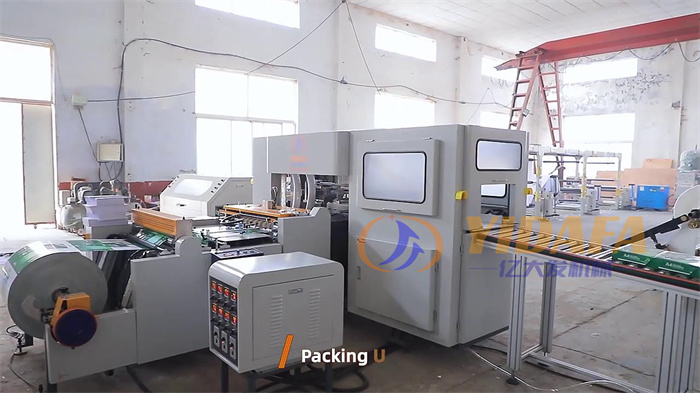

A4 paper making machine is an automatic cross cutting and organizing machine with high precision, connected with packing machine.It is the whole production line from big copy paper rolls to a4 paper reams packaging.The machine is suitable for cutting large coiled materials such as office paper and paper plastic composite materials.
This A4 paper production line making machine is suitable for cutting big rolling packaging materials such as paper, paper-plastic,multicolor laminated material,etc.
1.It adopts PLC touch screen control, servo motor for controlling constant-length cutting.
2.It adopts pneumatic, photoelectric sensor for controlling transmission system, with photo, electric,gas together,it has the functions of easy operation,high precision,good stability,low noise
3.This machine has the functions of the frequency converter timing device, automatic counting, stop working by alarm magnetic powder tension control, can be cut vertically,adopt blower to get rid of waste.

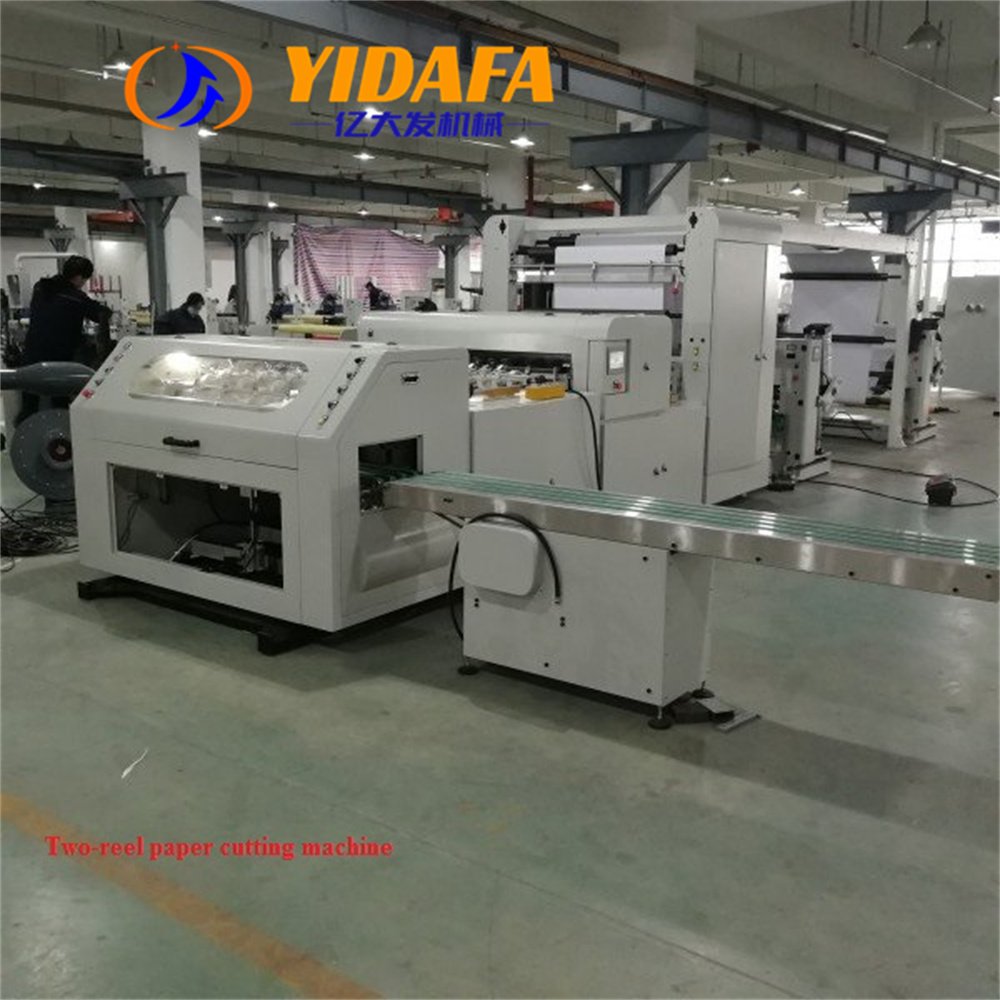

4.We have three types machine of single roll,double roll and four roll loading. It can cut one, two or four paper material rolls at the same time, which decide the speed.
Model | YDF-1100D (one roll, two roll, four roll) |
Max.width of cutting | 1000mm |
Max diameter of material | Φ1400mm |
Min.width of cutting | 50mm |
Length of cutting | 20-400mm |
Speed | 10-140times/min |
Precision | ±0.2mm |
Total Power | 9.5kw |
Weight | 3500kg |
Overall dimension(L*W*H) | 8600x1500x2000mm |
