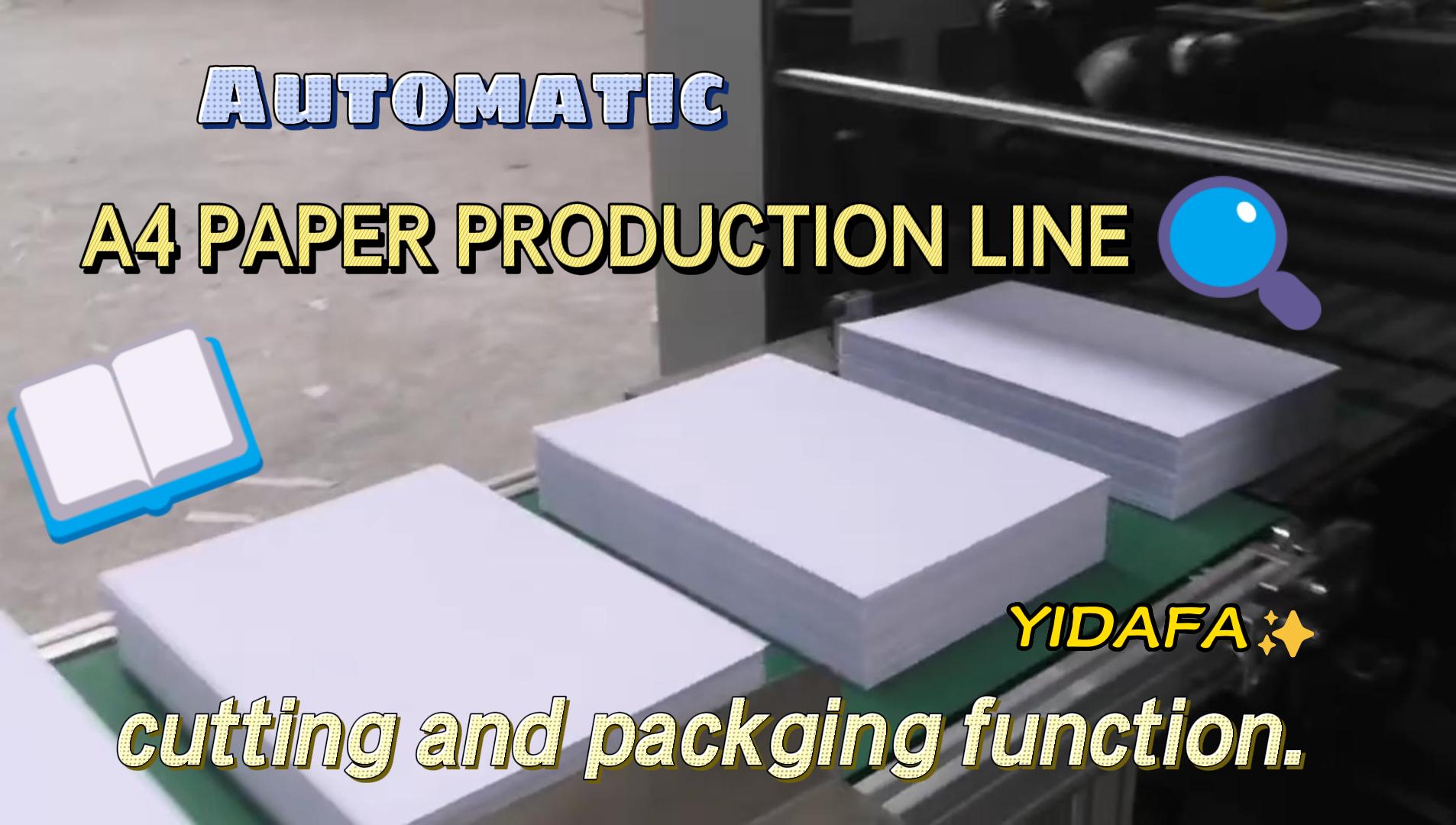

Copy Paper Size A4 Cutting Machinery
Copy Paper Size A4 Cutting Machinery is suitable for cutting all kinds of paper, self-adhesive, paper-plastic composite, non-woven fabric and other large roll packaging materials. This machine adopts servo motor to control fixed-length cutting. The transmission system adopts centralized control such as pneumatic and photoelectric sensors. This machine integrates light, electricity and gas. It has the advantages of simple operation, high cutting precision, mechanical stability and low noise. Motor frequency conversion speed regulation, automatic counting, alarm stop, magnetic powder taper automatic tension adjustment function. It is an ideal equipment for cutting large-scale paper rolls or coils with high quality in China.
Copy Paper Size A4 Cutting Machinery|YIDAFA
Performance and features:
This machine is suitable for cutting all kinds of paper, self-adhesive, paper-plastic composite, non-woven fabric and other large roll packaging materials. This machine adopts servo motor to control fixed-length cutting. The transmission system adopts centralized control such as pneumatic and photoelectric sensors. This machine integrates light, electricity and gas. It has the advantages of simple operation, high cutting precision, mechanical stability and low noise. Motor frequency conversion speed regulation, automatic counting, alarm stop, magnetic powder taper automatic tension adjustment function. It is an ideal equipment for cutting large-scale paper rolls or coils with high quality in China.
Features:
1. Host frequency conversion speed regulation, Panasonic PLC touch screen control system, automatic counting, automatic fixed length, alarm stop, automatic control and other functions
2. The frame adopts 16mm steel plate structure, the cross-cut knife seat adopts heavy-duty casting structure, and the guide roller adopts dynamic balance processing aluminum alloy guide roller
3. The drive positioning traction adopts the drive shaft structure of the servo system, and the feeding traction mode is that the motor drives the sprocket to drive the traction rubber shaft.
4. This machine is an ideal online cross-cutting equipment with high precision and high speed.
1. Main technical parameters:
model | YDF-1100 |
raw material maximum diameter | 1400mm |
cutting width | 1100mm |
cut length | 297mm |
cutting speed | 20-150times/min |
Horizontal precision | ±0.2mm |
total power | 11kw |
machine weight | 5000kg |
Dimensions (L×W×H) | 9200×2210×2000mm |
2. Host part
(1) The frame adopts 16# high-quality steel plate structure
1). Traction device:
(1) Structural type: active traction passive compression type
(2) Traction base adopts casting structure (1 set)
(3) The traction roller adopts rubber roller (specification: 6 pieces φ85×1150mm)
(4) Compression method adopts cylinder control
(5) The transmission guide roller adopts aluminum guide roller (specification: 26 pieces φ75×1150mm)
(6) The transmission guide roller can be adjusted up and down
(7) The motor adopts a three-phase asynchronous frequency conversion motor 1.5KW (Shanghai Dedong) (1 set)
(8) The inverter adopts Jitaike 1.5kw (1 set)
(9) The material feeding adopts the floating arm mechanism to store and buffer the material.
(10) Floating up and down tension adopts pneumatic traction method
(11) Floating guide roller: aluminum guide roller (specification: 12 pieces φ75×1150mm)
(12) The entire feeding mechanism is intelligently controlled by displacement sensors.
2) Feeding mechanism:
1. Actively adopt servo control positioning method
2. 4.4kw INVT servo motor, driver (1 set)
3. The industrial control system of the whole machine adopts the driving method of digital industrial control system: the main motor drives the active roller positioning
4. The transmission adopts synchronous belt and synchronous wheel transmission mechanism
5. The feeding roller adopts light rubber roller structure
6. Transported to the finishing area by conveyor belt.
3) Cutting device:
(1) Cutting method: the lower knife is fixed, and the upper knife actively cuts
(2) The tool block is cast heavy duty construction:
(3) Linear guide rail (2 pay)
(4) Oil container (2 pieces)
(5) Lubricating oil can be recycled
(6) The upper and lower round knives adopt imported balanced front steel knives (6 sets)
(7) Knives (specification thickness × width × length: 15 × 80 × 1150mm) (Shanghai joint venture) (2 payment)
(8) Operation mode: manually adjust the knife position arbitrarily
(9) Main transmission mode: the main motor drive matches the speed changer to drive the eccentric wheel linkage connecting rod to reciprocate the cutter
(10) The main motor adopts frequency conversion speed regulation motor Shanghai (1.5kw)
(11) The inverter adopts Jitaike (1.5kw 1 set)
(12) Transmission adopts synchronous wheel transmission mechanism
(13) Eccentric wheel (2 sets)
(14) Connecting rod (2 pieces)
(15) Unloading device; Pneumatic loading with shaft unwinding rack, standard configuration; 1 1100 air-expanding shaft, 160*300=2 cylinders, 1 set of magnetic powder 10 kg, 1 set of deviation correction system, 2 sets in total
3 Electrical control part: (the control and the host part are conjoined in parallel control) the whole machine adopts Panasonic PLC industrial control system control touch screen adopts Taiwan Weilun)
(1) The control system of the machine is roughly controlled by the main engine.
(2) Host control: including main motor control, traction control, feeding control, cutting control.
(3) Floating control: wide speed range, good performance no matter low speed or high speed.
(4) It is equipped with an electronic meter counter; alarm to stop; automatic fixed length, point-in and point-out functions.
(5) The above electrical components are selected from Chint; the switch is selected from Schneider brand
4 Supporting facilities: (users are responsible for it)
(1) Power supply: three-phase four-wire air switch: voltage 380V/50Hz
