Culture paper machine is a machine which can make paper by long net dewatering and forming, mechanical extrusion dewatering and drying. The raw materials used are: waste paper, waste paper edge, bleached grass pulp board, bleached wood pulp board, etc. Can produce culture paper, writing paper, A4 paper, paper bags, etc. Reliable quality, stable performance, easy operation, energy saving and environmental protection, is the ideal product in papermaking machinery.
2100 PAPER MACHINE
Culture paper machine

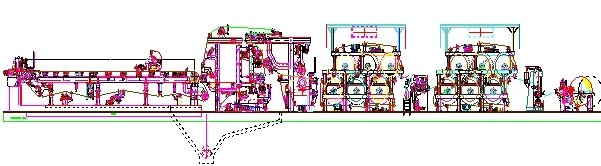

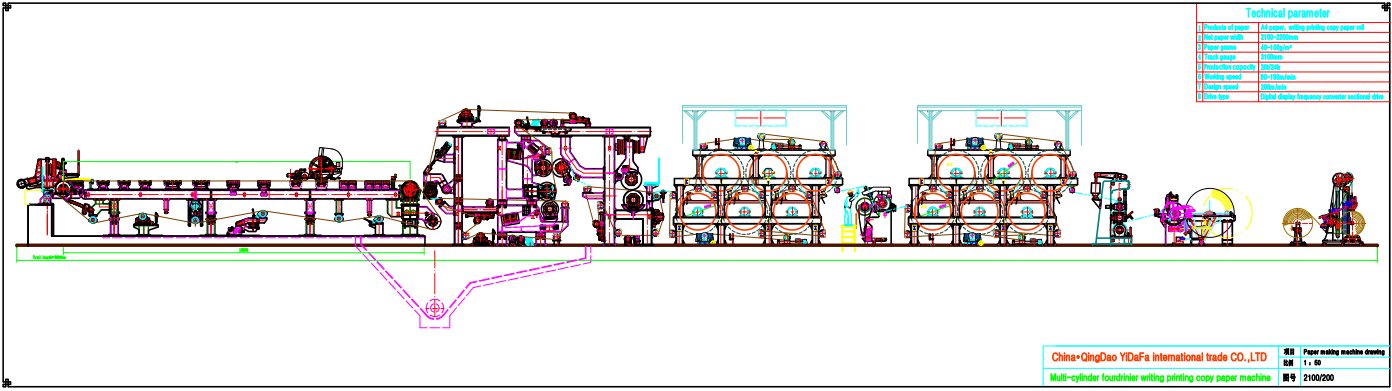

PAPER MACHINE DESIGN.
| Technical specification | |
| 1. Main Product | Paper、Writting paper、A4 paper |
| 2. Grammage | 40～100g/㎡ |
| 3. Equipment for | Double round net and double cylinder |
| 4. Capacity | 20T/D |
| 5. Raw paper width | 2100-2200mm |
| 6. Design speed | 200m/min |
| 7. Transmission | 80-180m/min |
| 8. Roller balance | G2.5 class |
| 9. Dryer balance | G4 class |
| 10. Winding paper roll | G1.6 class |
| 11. Transmission mode | Ac motor frequency control of motor speed digital distribution transmission |
| 12. Arrangement mode | Right or left arrangement(selected by the use |
| 13. Gauge | 3100mm |
| 14.Large equipment 1 | Dryer cylinder:Ø1500mm×12se |
| 15. Large equipment 2 | Cylinder mould |
