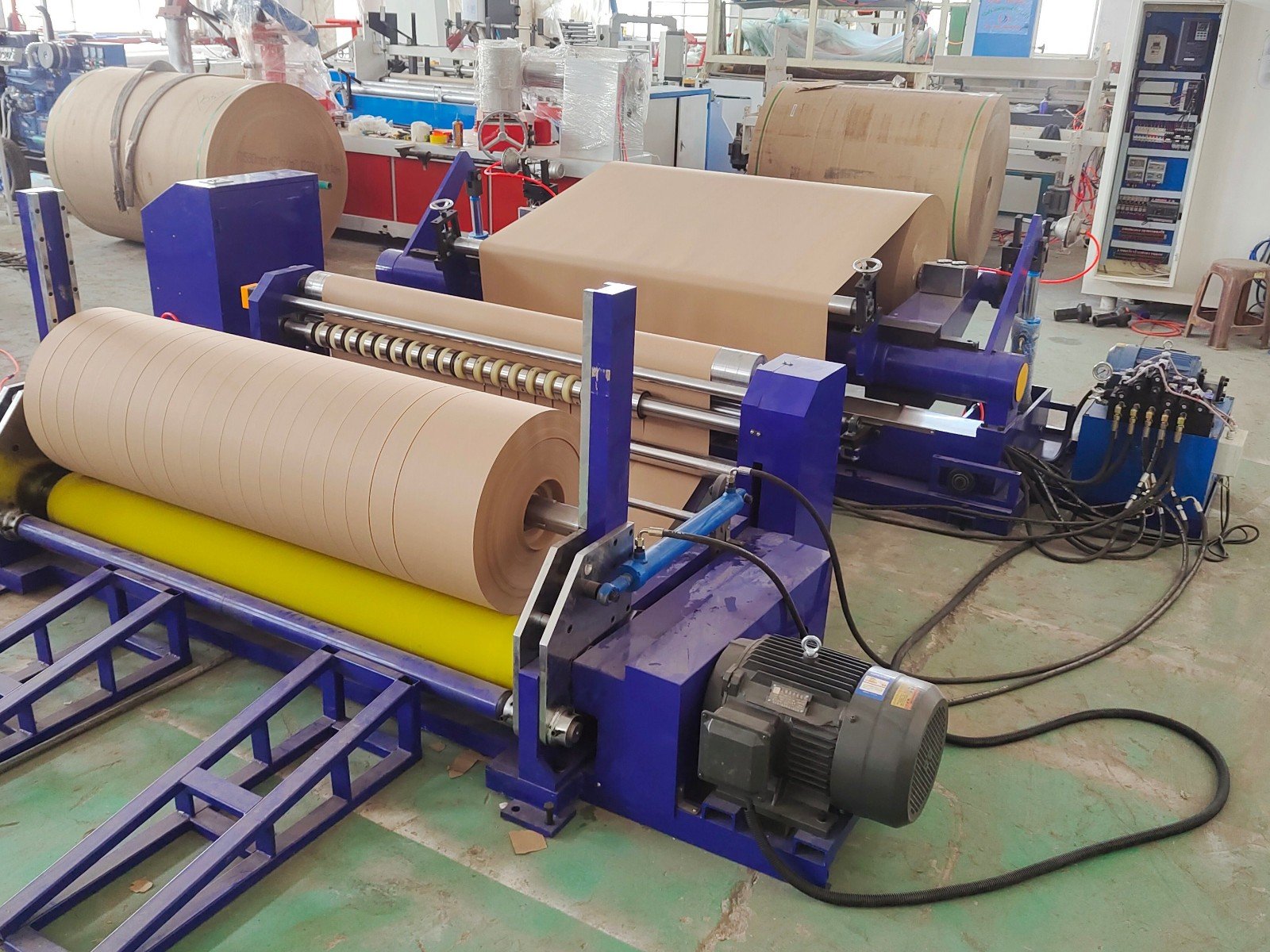

1600D kraft paper roll slitting and rewinding machine

1600D high-speed slitting machine

Slitter parameters: Applicable raw material width: 1600mm (standard)

Applicable raw material outer diameter: 1200mm (maximum)

1200mm diameter after winding (maximum)

Minimum slitting width: 50mm (minimum)

The maximum line speed of slitting: 350M/min

Reel diameter: 76MM

Host power: 7.5KW

Tool post lifting motor: 0.75KW

Raw material lifting motor: 0.75KW

Raw material clamping motor: 1.1KW × 2

Operator: 1

Host size: 3100×3000×1360mm

Electricity motor : 380V,50HZ.
