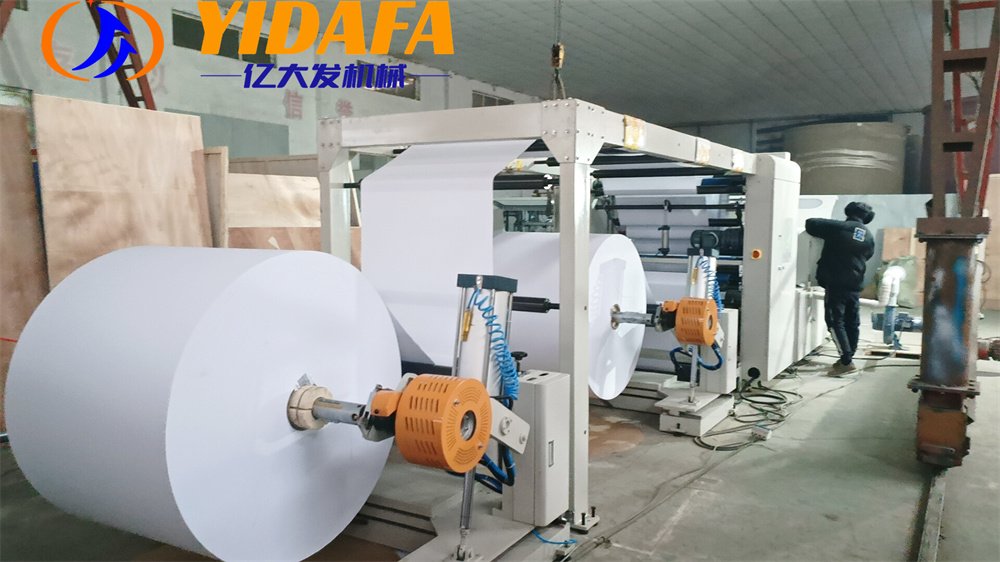

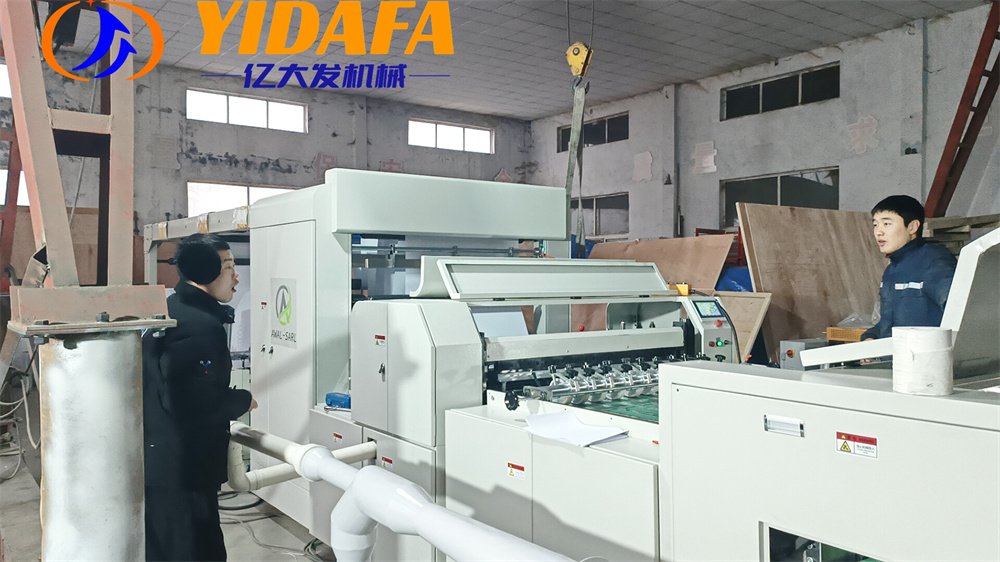

A4 Paper Roll to A4 Sheet Manufacturing Machine

A4 Paper Roll to A4 Sheet Manufacturing Machine.

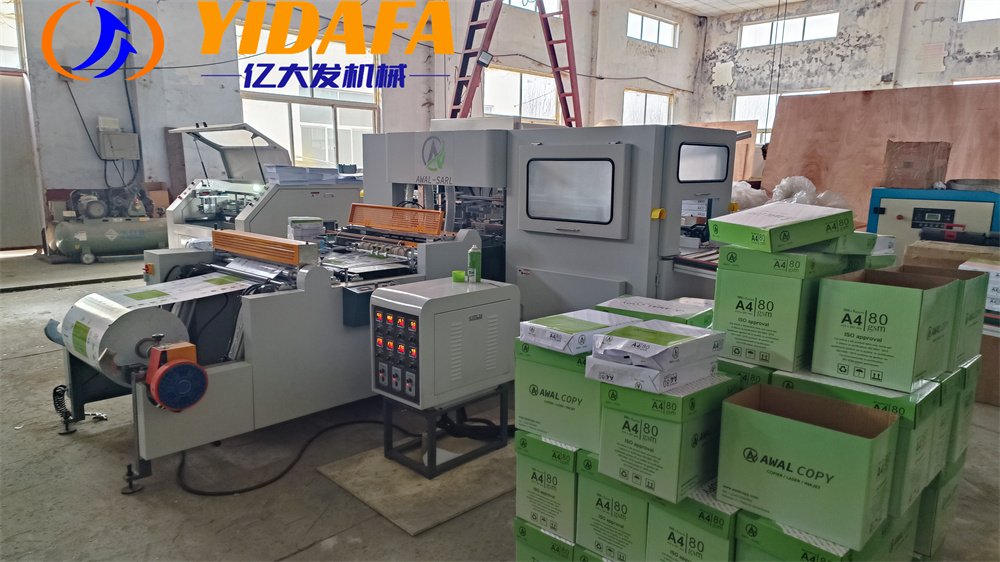

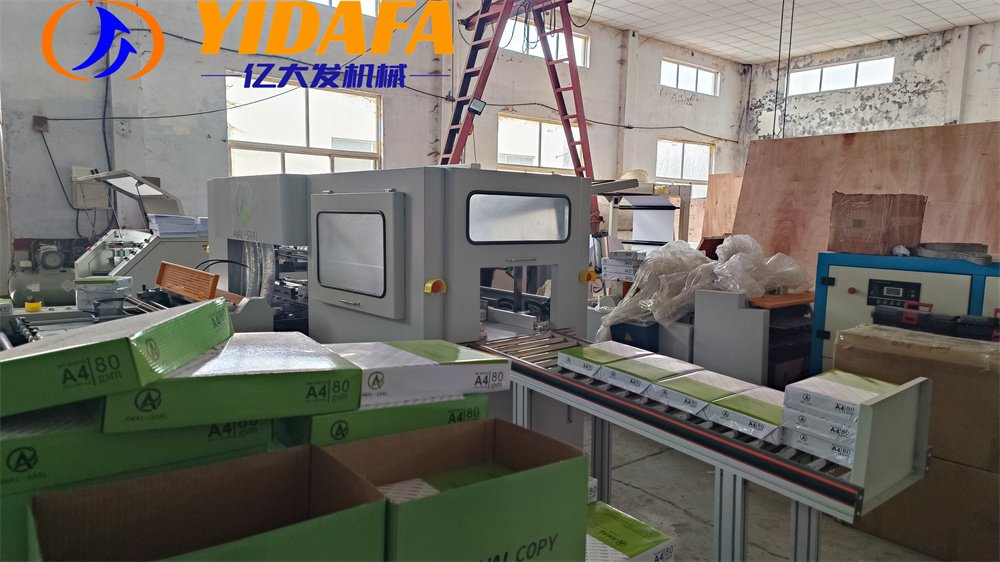

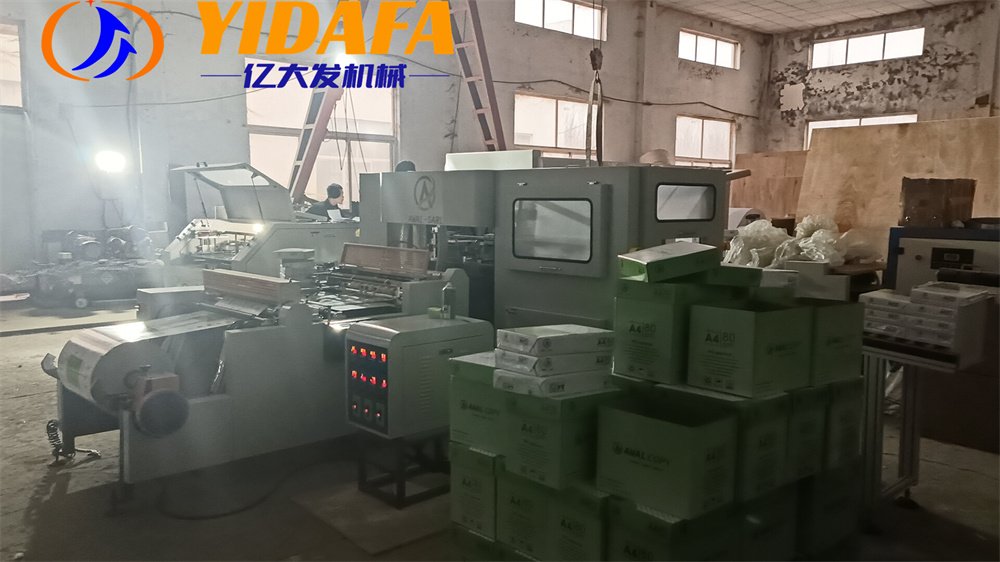

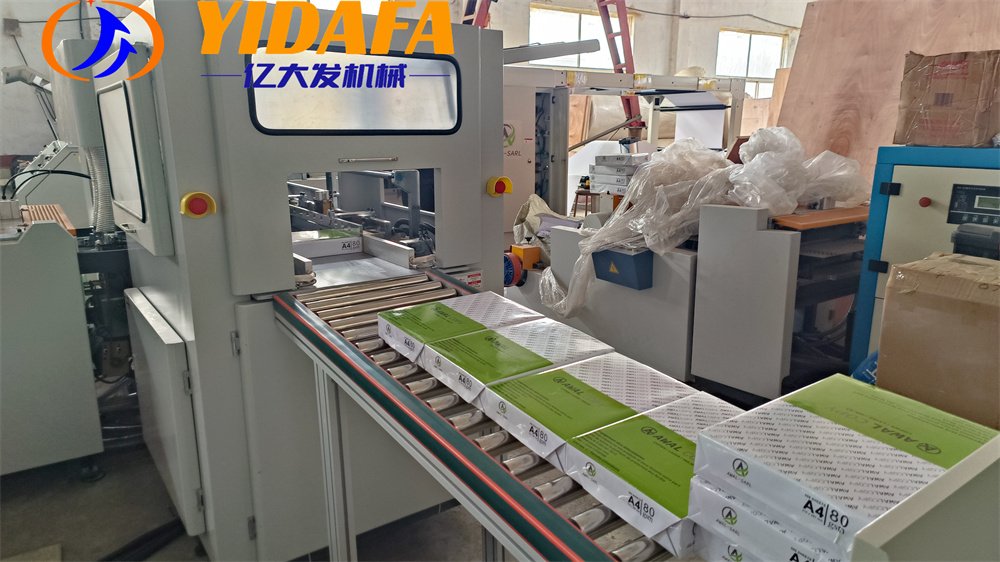

A4 copy paper cutting and packing machine line

A4 paper production line making machine.

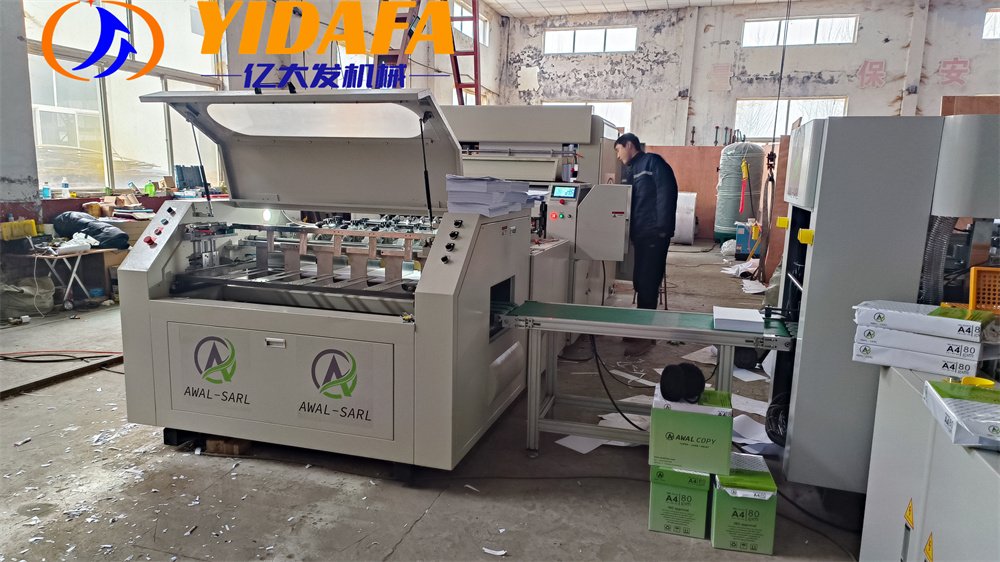

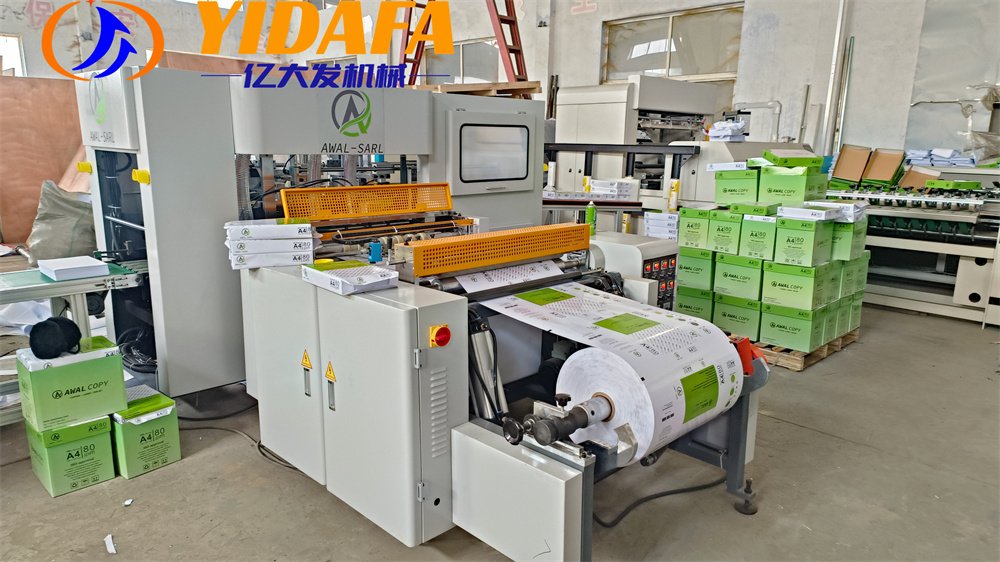

including a4 paper cutting machine and automatic a4 reams packing machine.It is fully automated office copy paper production line from rolls to a4 paper sheet.

Speed: 3 ream/min.

Labor:2 workers at least.

Total Power:about 14kw.

Workshop size:200 square meters at least.

Transporting detail:one 40ft container .

A4 Paper Roll to A4 Sheet Manufacturing Machine

Payment terms:40% by T/T in advance as deposit, 60% by T/T before shipment.A4 Paper Manufacturing Machine.

Cutting Unit

(1) Cutting style: fix well the lower cutter and cut actively by upper cutter

(2) Cutter holder: adopts casting heavy style structure

(3) Slip bearing（2unit）

(4) Fount (2 unit）

(5) Lubricating oil can be recycled using

(6) Bot

h upper and lower cutters adopts bar style imported balance silicic steel cutter

(7) Cutting blade （Spec.Thickness×width×Length：15×80×1150mm）

(8) Cutter position can be adjutable by hand china a4 paper machine price.

(9) Active transmission style: main motor transmission equipped with derailleur enable centrifugal wheel joined with connecting pole to run cutter reciprocatingchina a4 paper machine price.

(10) Main motor: by transducer speed adjusting （1unit）

(11) Transducer: (Germany Rexroth))1.5kw（1unit）

(12) Transmission: adopts gear wheel and chain wheel together structure

(13) Centrifugal wheel（2unit）

(14) Connecting pole （2unit）china a4 paper machine price.

(15) Slitting way: Bottom blade initiative, drive upper balde to slit.

(16) Adopts round cutters.china a4 paper machine price.

(17) Upper cutter shaft adopts steel shaft ( 1 unit φ45 x 1500mm)

(18) Upper round cutters is made form shanghai Shenlong group (φ45 x 14.2x105mm)

(19) Bottom cutter shaft adopts steel shaft (spe. 1 unit φ55 x 1500mm)

(20) Bottom round cutter adopts shanghai shenlong cutter (φ55 x 14.2 x 80mm)

(21)  Slitting precision : ±0.2mm
