How much is the price of fully automatic a4 paper making machine?The full-automatic a4 paper cutting packaging machine can realize the high-speed completion of a4 paper making.YIDAFA could supply this kind of a4 paper making machine with good price.
From roll to a4 size sheet A4 PAPER MAKING MACHINE
FULLY AUTOMATIC A4 PAPER MAKING MACHINE PRICE
1.DEFINITION.
How much is the price of fully automatic a4 paper making machine?The full-automatic a4 paper cutting packaging machine can realize the high-speed completion of a4 paper making.YIDAFA could supply this kind of a4 paper making machine with good price.
1.1.According to the quantity of loading paper reels,YIDAFA fully automatic a4 paper making machine has four types:one-reel,two-reel,four-reel and five-reels.
1.2.According to the output machine speed of making a4 paper in fully automatic mode,this machine could be :1.5 reams per minute,3 reams per minute,6 reams per minute and 7.5 reams per minute.
1.3.According to the degree of automation,there are semi automatic machine and fully automatic a4 paper making machine.
1.4.Full-automatic a4 paper making machine consists of Paper cutting machine and packaging machine.
2.MACHINE FEATURES.
2.1.High precision servo control. A4 Paper cutting machine adopts servo motor (or stepping motor) to control fixed length cutting. The transmission system adopts centralized control such as pneumatic and photoelectric sensors. This machine integrates light, electricity, and gas, and has the advantages of simple operation, high cutting accuracy, mechanical stability, and low noise. (Pneumatic feeding optional) Motor variable frequency speed regulation, automatic counting, alarm shutdown, magnetic powder or friction plate manual tension adjustment.
2.2.The use of A4 paper packaging machines is clean and hygienic, eliminating the need for manual work, saving labor, time, and environmental protection. Side opening protective baffle with good visibility, safe operation.
3.MACHINE PARAMETERS.
Model 1100 full automatic a4 paper making machine with one/two/four/five rolls. | |
Max unwinding diameter | φ1100mm |
Reference weight of cutting paper | 40~500g |
Max cut width | 1,100mm |
Cutting length | 100-500mm |
Cutting speed | 3 reams/min.or customize |
Cutting precision | ±0.2mm |
Voltage: | AC380V/220V x 50HZ |
Total power | 14 KW |
Main function
| 1) can be two rolls, |
2) With paper stacker | |
3) With round cutter for slitting | |
4）With belt transferring automatic to packaging unit | |

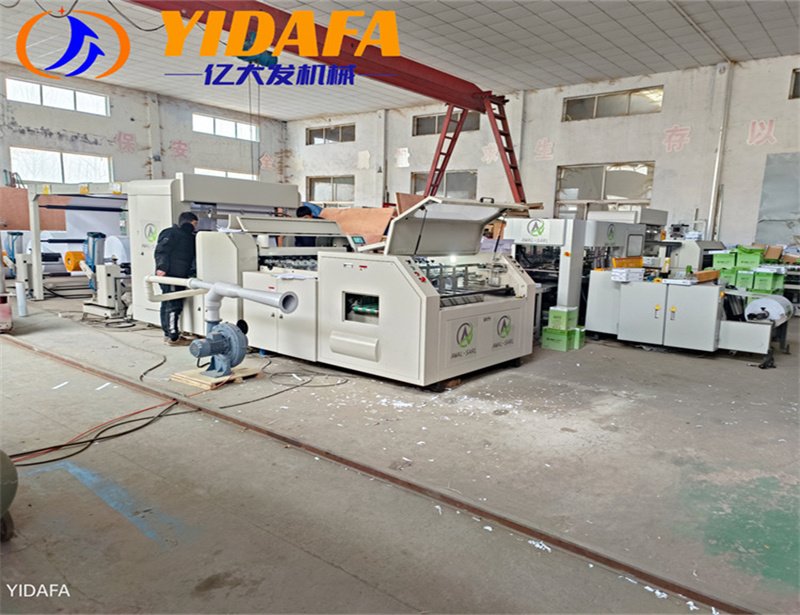

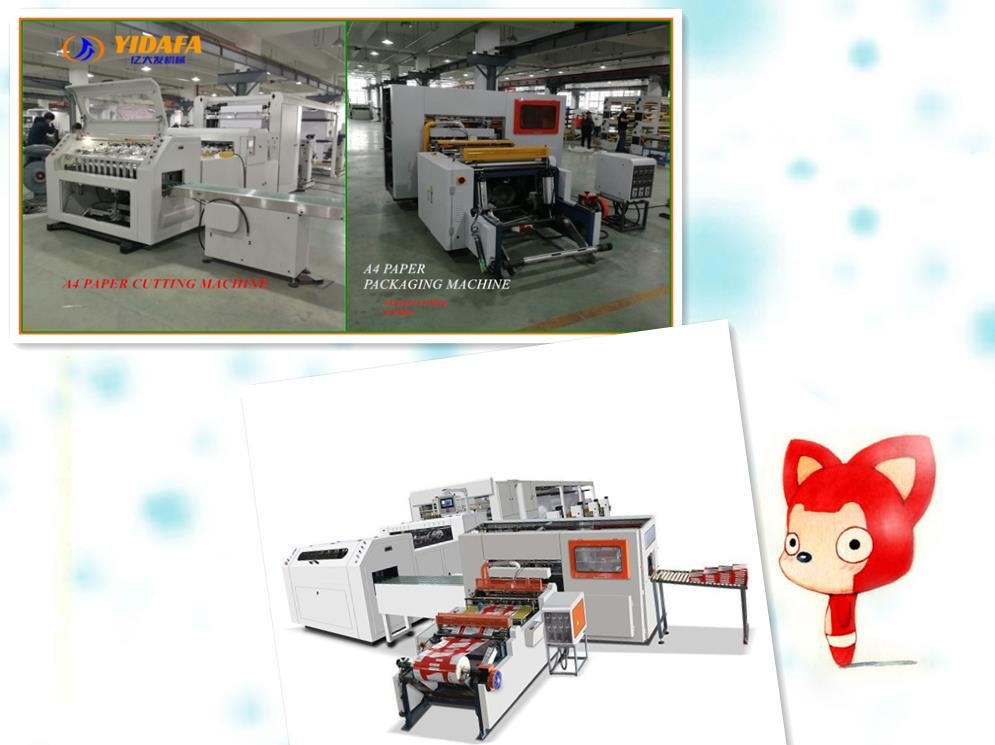

4.DETAILED IMAGES
If you have any needs , please fill out the form below and we will contact you as soon as possible.
