V-Type Kraft Paper Carton Edge Protection Machine

PRODUCT DETAILS

V-type

PRODUCT DETAILS

V Paper Angle Protector Machine

High Speed Paper Angle Protection Punch Dual-purpose Machine refers to a machine specialized in the production of paper corner protection. Generally, it is composed of paper guide, gluing, punching, cutting, automatic stacking and other devices and some accessories, which can complete all the processes of paper corner protection.

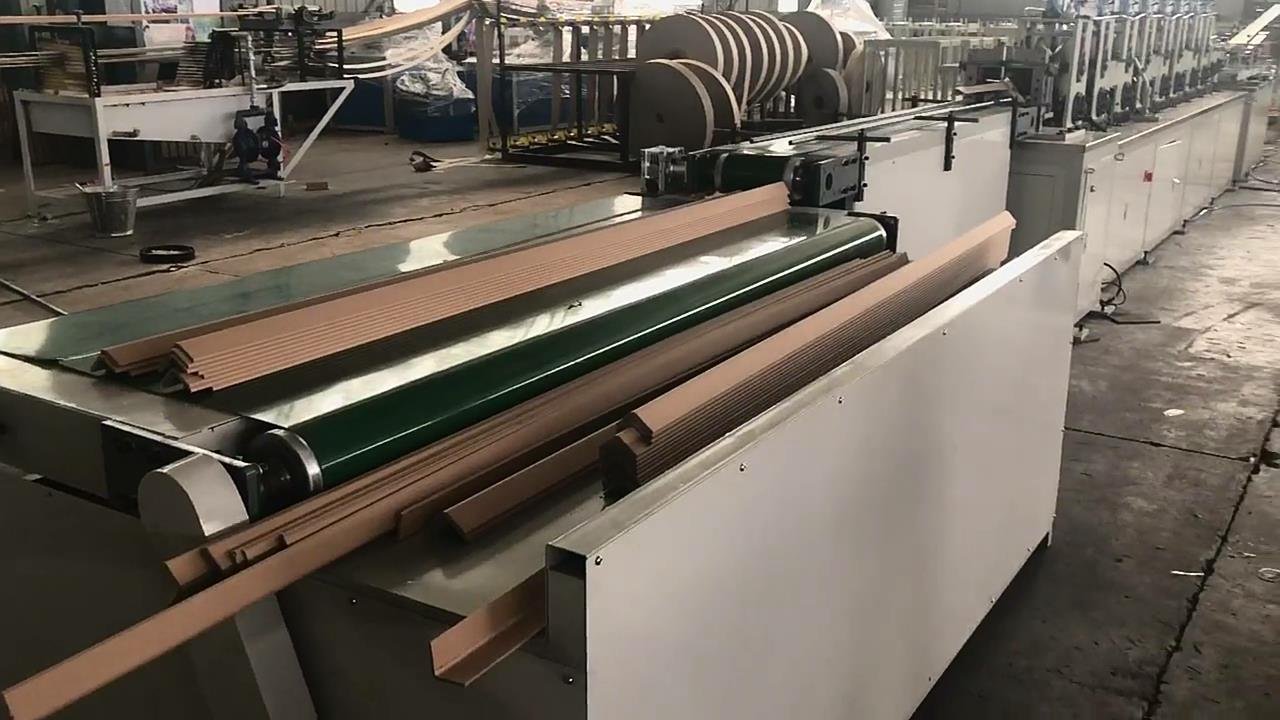

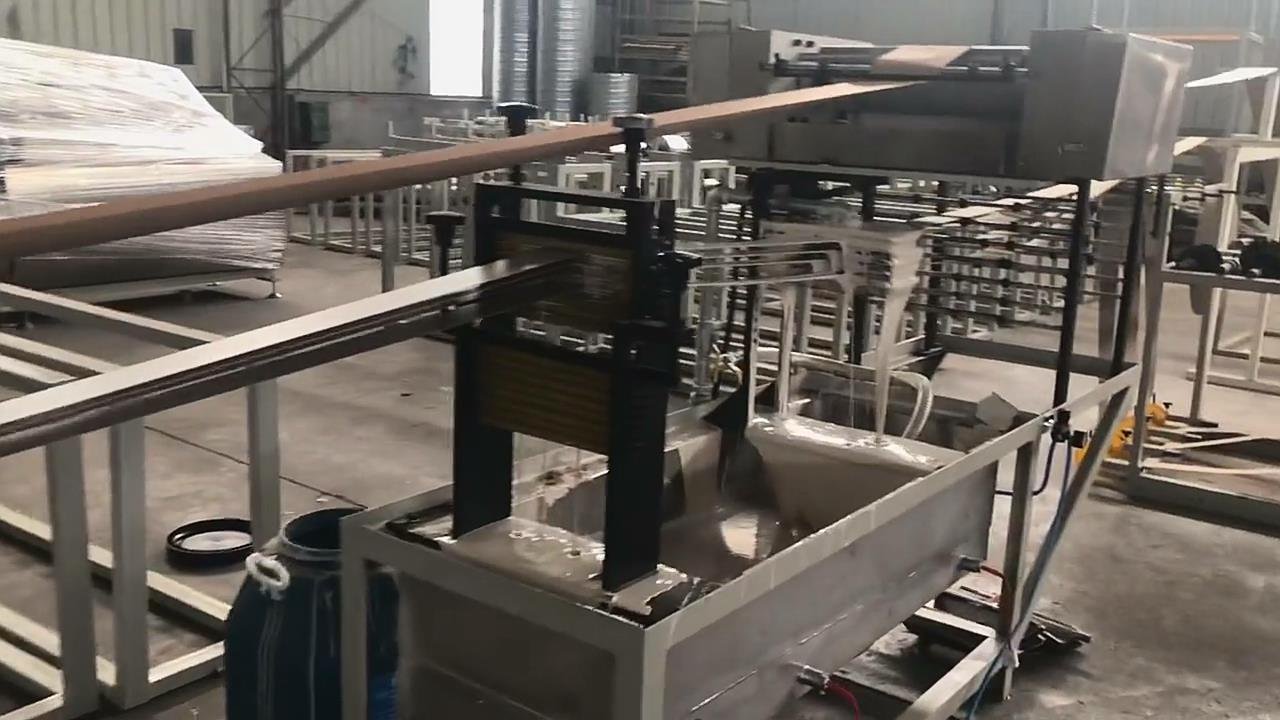

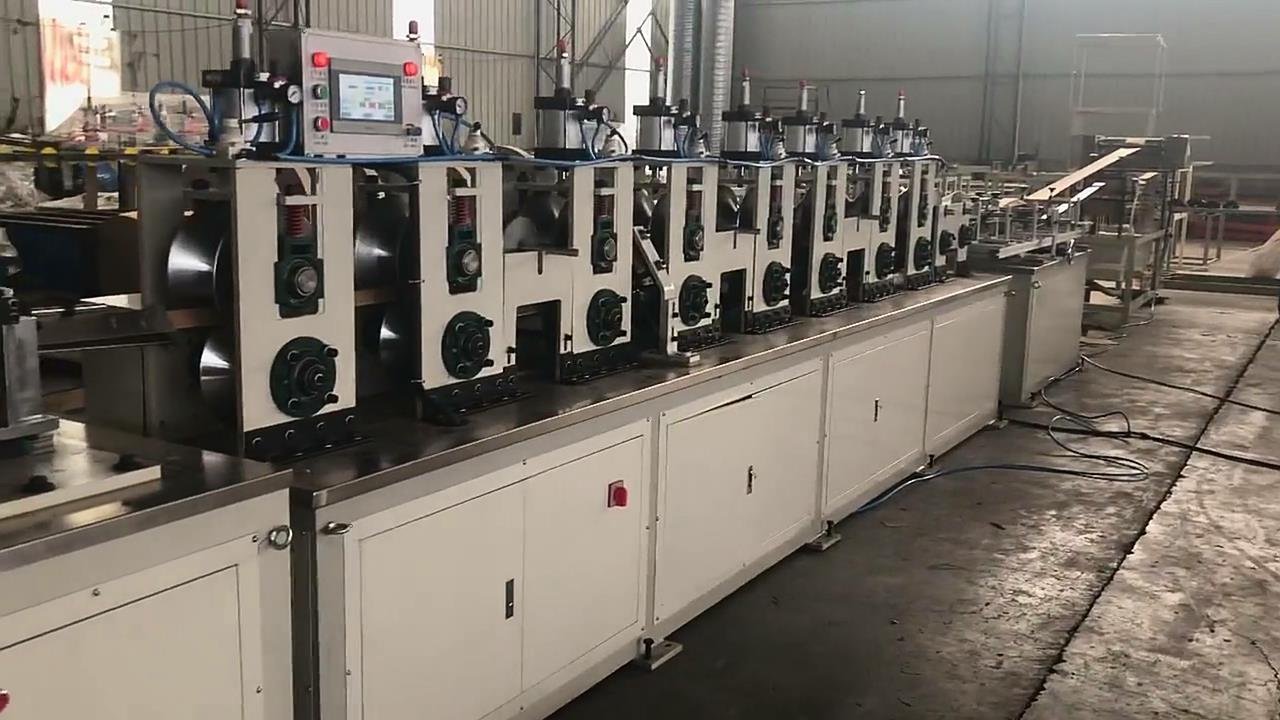

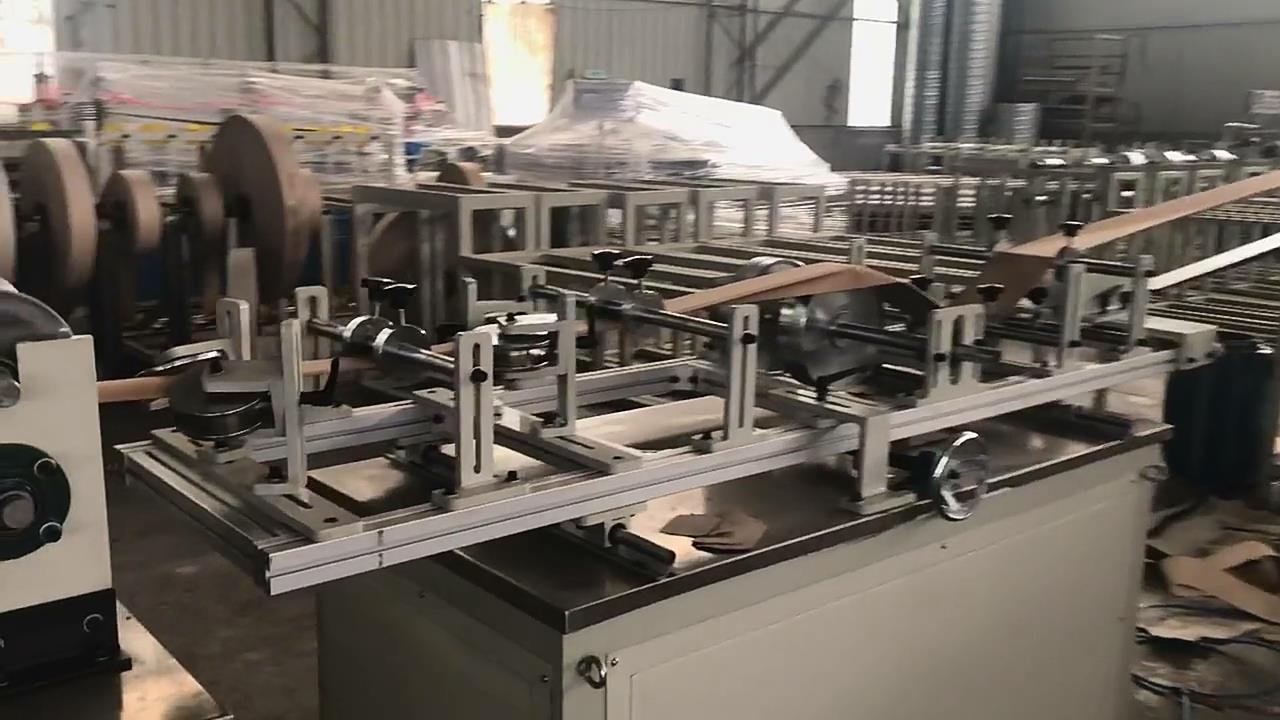

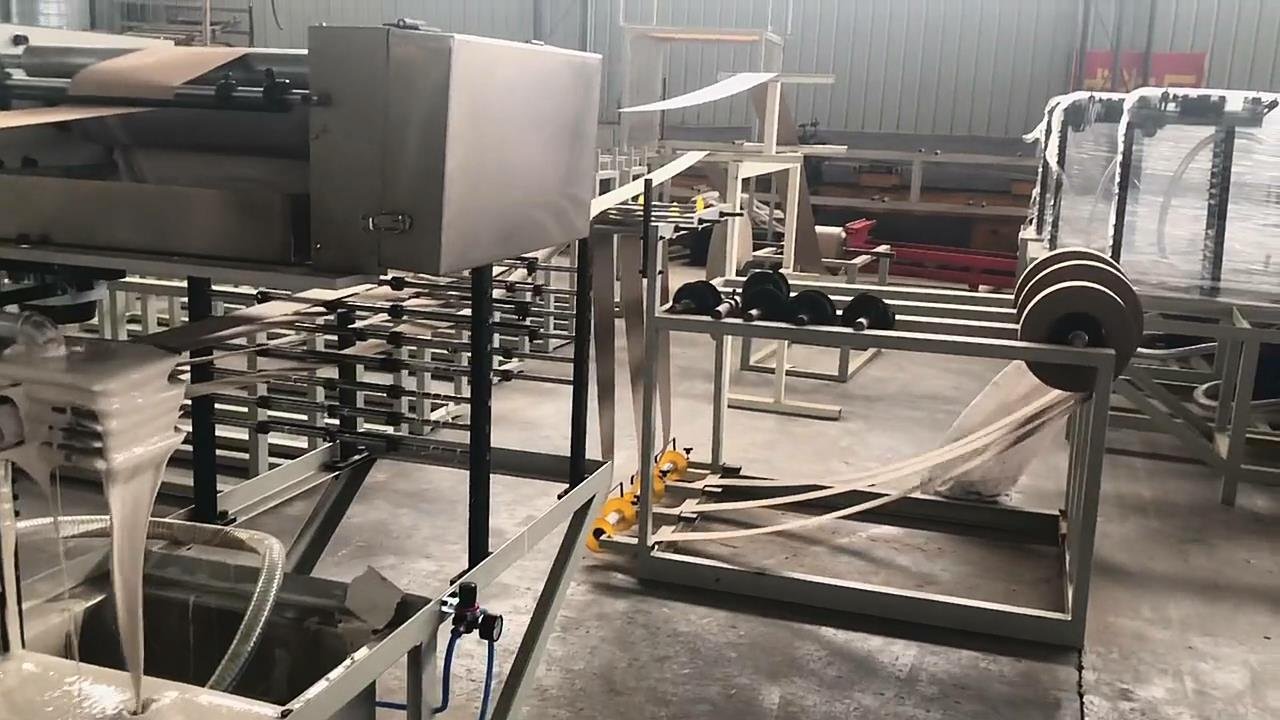

The gluing of the guide paper is completed by several sets of rollers, and the gluing is carried out while guiding. The forming part is composed of several sets of "V"-shaped pressure rollers that cooperate with each other to press the glued paper into a right angle. The cutting device is composed of an air cylinder and a pair of "V"-shaped die. The paper corner length is determined by the user, and the cutting action is safe and reliable.



1.Technical parameter


Paper Angle Protection Specification

Wide20-100mm

Long30-9000mm

Thick2-8mm

Production speed

0-40m/min (guard angle longer than 1500mm)

Host power

7.5kw+4.3kw*2

Control mode

Frequency control

Raw material

The surface of the paper 150g-200gsm

Core paper 300g-700g

Cutting mode

Automatic cutting

Number of operators

1-2people



2.Sizemm

Size of host machine: L*W*H

7000*700*1400mm

Space for the machine

22m*3m

Hub diameter

258mm

Hub height

150mm

Host weight

3326kg

Total weight

5136kg



3. Drive system

Host power

7.5kw Qiangsu/Yongshun

Main engine speed

1400r/min

Max. speed of hub

140r/min

Transmission type

WPA/B120    1:10

Drive Chain Type

12A

Bearing

Wanxiang

Cutter motor

Servo Motor 4.3kw Siemens Brand

Linear guide rail

Taiwan HIWIN



Control system

Interface

Machine specific

Program version

cx-pq.04

Frequency converter

ERG

Major Executing Devices (Contactors, etc.)

CHINT

Button

Siemens

Emergency stop

Siemens

knob

Siemens

Cylinder element

CEHNGDI/SUOPAI/TIANAO

Synchronization Controller

Machine specific



Configuration device

8 sets of forming device

Right-angle paper holder

Automatic gluing device

Cutting table device (CNC)

Stainless steel operating table

Stainless steel mounting frame

The guide wheel of the upper paper rack is stainless steel tube.

Application Tools (free)

A Set of inner hexagonal wrenches
