Machine For Producing Toilet Paper And Napkins

Machine For Producing Toilet Paper And Napkins.This machine could make parent tissue paper rolls,which could be processed into small bathroom toilet paper roll and napkin tissue paper in restaurant.

PRODUCT DETAILS

Tissue Paper Making Machine Fully Automatic Toilet.Including Toilet Paper Rewinder Machine,Automatic Band Saw Cutter Machine and Automatic Packing Machine.

PRODUCT DETAILS

Machine For Producing Toilet Paper And Napkins


With the development of paper machines towards large size, the average width of the base paper produced is 1.9-3 meters after slitting. Many large paper mills have more than three meters of paper machines. The 1880 toilet paper rewinder can process toilet paper with a large axis of less than 2.1 meters. Compared with other types of toilet paper production equipment, the 1880 model is more suitable for small and medium-sized enterprises and individuals, and has advantages in the selection of raw materials, In addition, it can also increase production and reduce paper loss to a certain extent.

Tissue Paper Making Machine Fully Automatic Toilet.Including Toilet Paper Rewinder Machine,Automatic Band Saw Cutter Machine and Automatic Packing Machine.

Toilet paper rewinder machine mainly includes roll toilet paper rewinder machine and mesh cage toilet paper rewinder machine, also known as toilet paper machinery. Toilet paper machines are mainly used to process toilet paper, generally including roll toilet paper and square toilet paper.

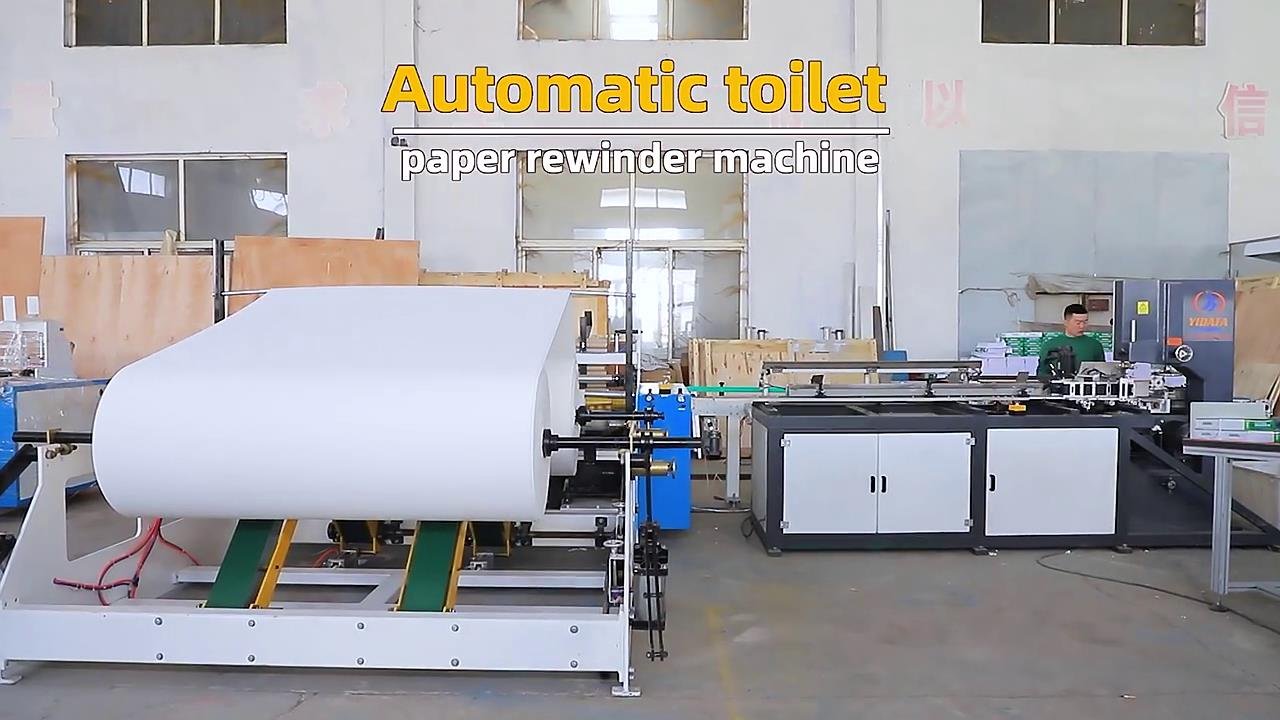

Toilet paper rewinder machine

According to the degree of automation, the toilet paper rewinder machine is divided into automatic toilet paper rewinder machine and semi-automatic toilet paper rewinder machine. The full-automatic toilet paper rewinder machine uses computer programming technology to realize automatic change of paper tube (or coreless automatic roll paper), automatic glue spraying, edge sealing and trimming, which reduces labor intensity and improves product quality. The intensity of manual operation of semi-automatic rewinder machine is a little higher. Only the toilet paper that can produce paper tubes is a little dodgy in project conversion, and the rest are basically the same as the full-automatic toilet paper rewinder machine.

The roll toilet paper rewinder machine can be divided into full-automatic toilet paper rewinder machine and semi-automatic toilet paper rewinder machine according to the degree of automation. The automatic toilet paper rewinder machine is programmed by computer, and the semi-automatic toilet paper rewinder machine is not controlled by PLC.

Toilet Paper Machine Full Automatic


Toilet Paper Machine Full Automatic


Toilet Paper Machine Full Automatic


Toilet Paper Machine Full Automatic


Toilet Paper Machine Full Automatic



MAIN FEATURE:

1. The automatic toilet paper rewinding machine can choose double-sided embossing and gluing compound, which can make the paper softer than single-sided embossing. Process roll kitchen towels, and reduce the weight by 15% or more when making the same size finished product.

2. The machine is equipped with centerless, solid, and roll-tube toilet paper, which can switch between products in an instant, and can also be selected according to user needs.

3. Automatic edge trimming, glue spraying, sealing, and shaft drawing are completed simultaneously in an instant, so that there is no paper loss when the roll paper is transferred to the band saw for cutting and packaging, thus greatly improving the production efficiency and the grade of the finished product, and the finished product has a paper tail , for easy enablement.

4. Pneumatic belt feeding, rewinding shaft and each shaft of base paper have independent tension adjustment mechanism.

SEMI-AUTOMATIC TOILET PAPER REWINDER

The semi-automatic toilet paper machine does not have PLC computer programming, the rear frame is a low frame, the two sides of the synchronous shaft drive have small air caps, and the water is cut off. It can be used to process 1-3 layers of toilet paper rolls. The power is 3KW, but it cannot be made into very tight coreless rolls. .

The advantages of the semi-automatic toilet paper rewinding machine are: small footprint, small investment, less wearing parts, and low failure rate!

Compared with the fully automatic toilet paper machine, the semi-automatic toilet paper machine works relatively slowly, and the output is not as high as that of the fully automatic one. It requires a lot of manual labor. The process of converting toilet paper with a coreless paper tube is laborious and cannot be rolled tightly. , there is only one rear shelf on the roll paper part, which limits the speed of the equipment to not exceed a certain value, otherwise the stability of the equipment will be reduced; the small air caps on both sides limit the pneumatic paper loading; the water break function limits the edge sealing of the produced roll paper In addition, this equipment has no automatic glue-spraying and sealing function, no glue tail, and no pneumatic paper loading function.

NET CAGE TOILET PAPER REWINDER

The cage type rewinding machine is to rewind the large roll paper on the large rolling cage after embossing, and cut it with a band saw machine to form multi-layer flat square toilet paper. The rewinding machine adopts automatic sheet counting, and the diameter of the large rolling cage can be adjusted to minimize the loss according to the needs. It is an ideal equipment for producing flat square toilet paper.




Model

1880mm ~2000mm

Applicable Raw Paper

2-3 plies 14~23g/Wood pulp paper

Finshed product

Toilet rolls with core /without core

Raw Paper Width

Max 2100mm

Raw Paper Dia

Max2100mm

Finished Size

Φ60~130 mm

Finished Core Dia

Φ35mm-Φ50mm

Raw Paper Core Dia

3(76.2 mm)

Perforation

Spiral perforating knife,Chain wheel positioning



Production Speed

200 m/min

Power

12kw

Parameter Design

LCDTouch Screen

Control

PLC

Paper Feeding

 3 Unwinding stands,controlled by pneumatic

 Air Pressure

0.5 Mps

Power

380V,50hz
