Waste Recycle pulp toilet paper machine is a complete set of equipment that uses recycled waste paper as raw material to produce toilet tissue paper raw material rolls through processes such as rinsing and pressing.
Product introduction: This is a complete production line that can produce toilet paper raw paper rolls from waste paper. Eco-friendly, suitable for small and medium-sized factories.
WASTE PAPER RECYCLE MACHINE TO MAKE TOILET TISSUE
1.Waste Recycle pulp toilet paper machine is a complete set of equipment that uses recycled waste paper as raw material to produce toilet tissue paper raw material rolls through processes such as rinsing and pressing.
2.Pulping Process of Recycled Pulp Tissue Paper Making Machine
◆PRODUCT PROCESS

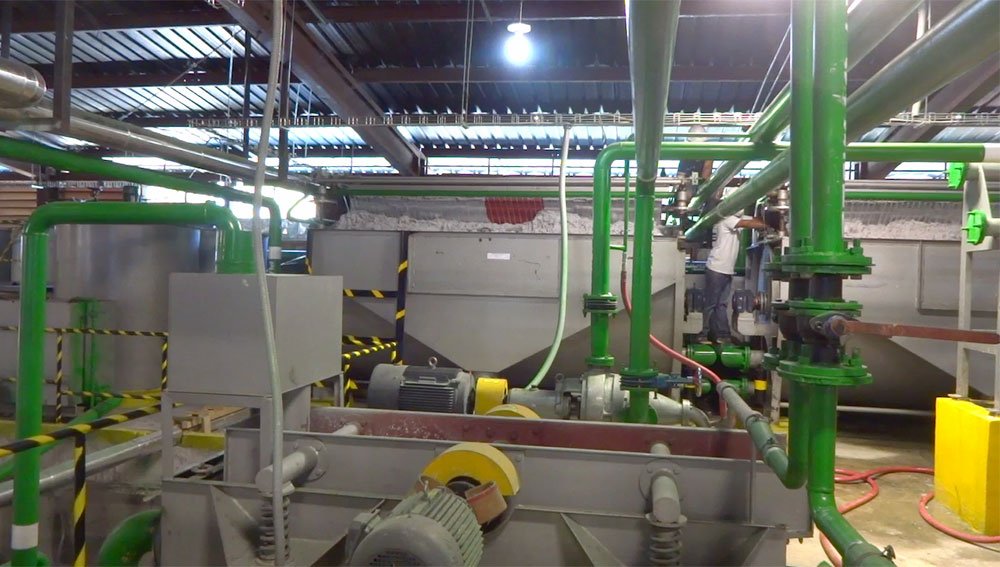

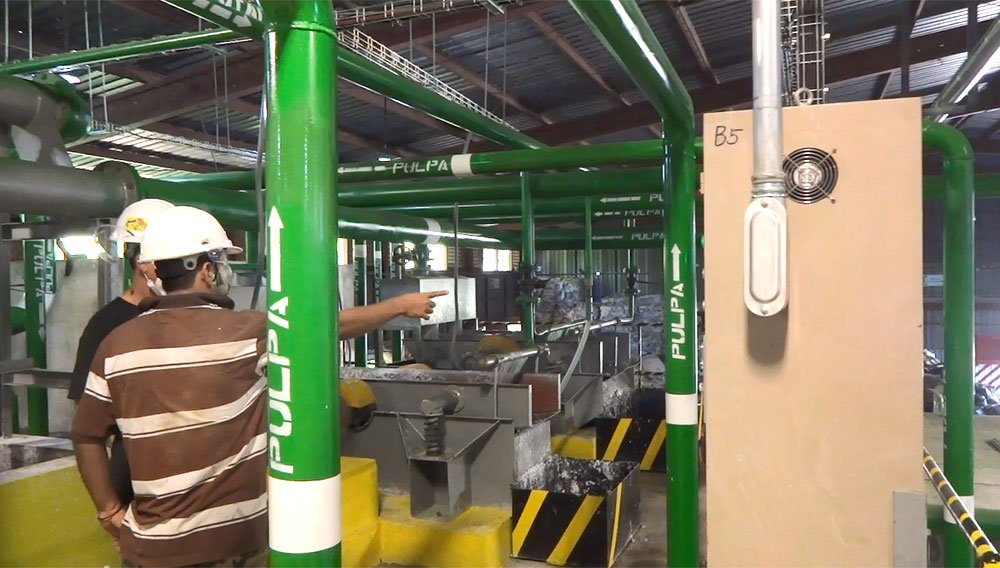

◆RECYCLED PAPER SLURRY SYSTEM
3.SPECIFICATION
Paper making machine technical specification: | |
1. Main Product: | Toilet paper, napkin paper and drawing and so on |
2. Grammage: | 15～30g/㎡ |
3. Equipment form | The inversion of slurry |
4. Capacity: | 5~5.5 1T/24h |
5. Raw paper width: | 1880-2000mm |
6. Design speed: | 180m/min |
7. Transmission speed： | 70-150m/min |
8. Dynamic balancing speed: | 300m/min |
9. Roller balance: | G2.5 class |
10. Dryer balance: | C4 class |
11. Winding paper roll: | C1.6 class |
12. Transmission mode: | Ac motor frequency control of motor speed digital distribution transmission |
13. Arrangement mode: | Right or left arrangement(selected by the user) |
14. Gauge: | 2400mm |
15.Large equipment 1 | Dryer cylinder:Ø2500mm×1 set |
16.Large equipment 2 | Cylinder mould:Ø1500 mm×1set |
