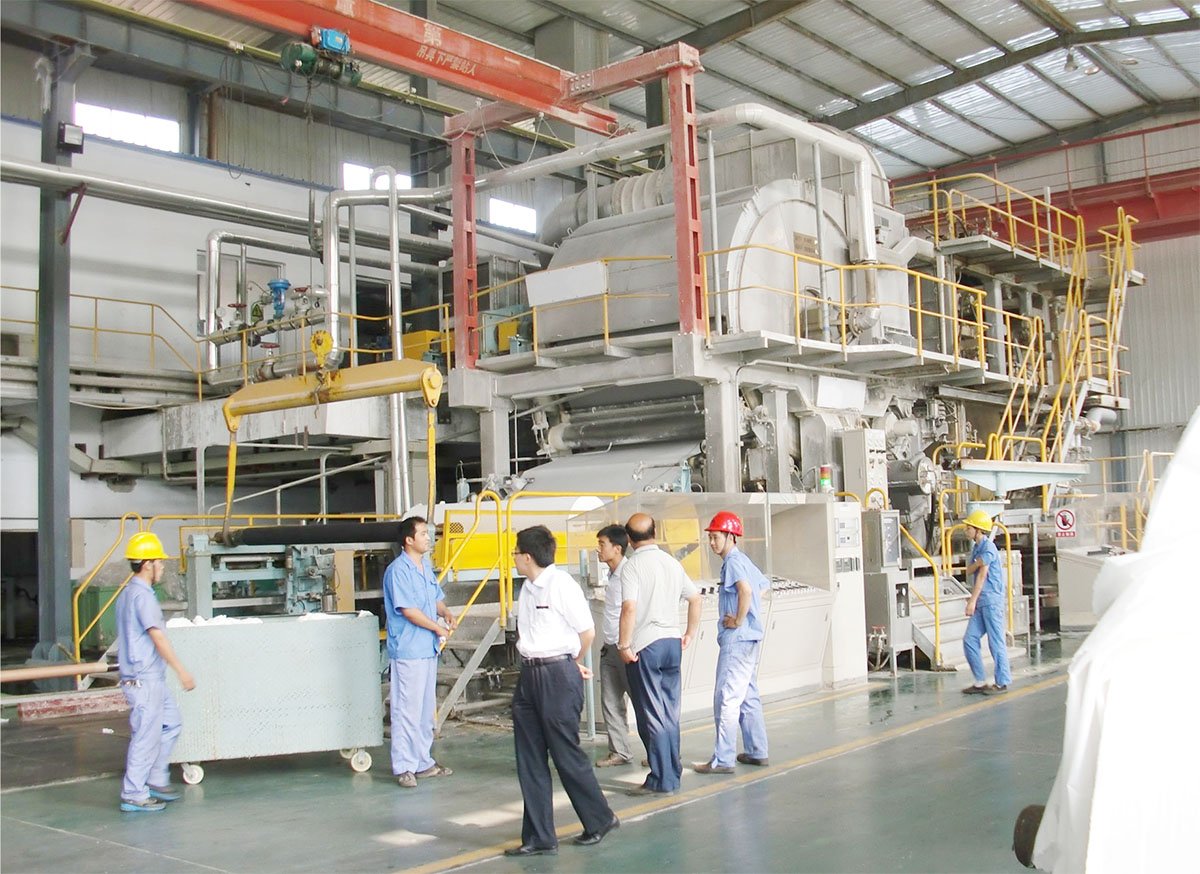

2850mm Crescent toilet paper machine

2850MM CRESCENT TOILET PAPER MACHINE

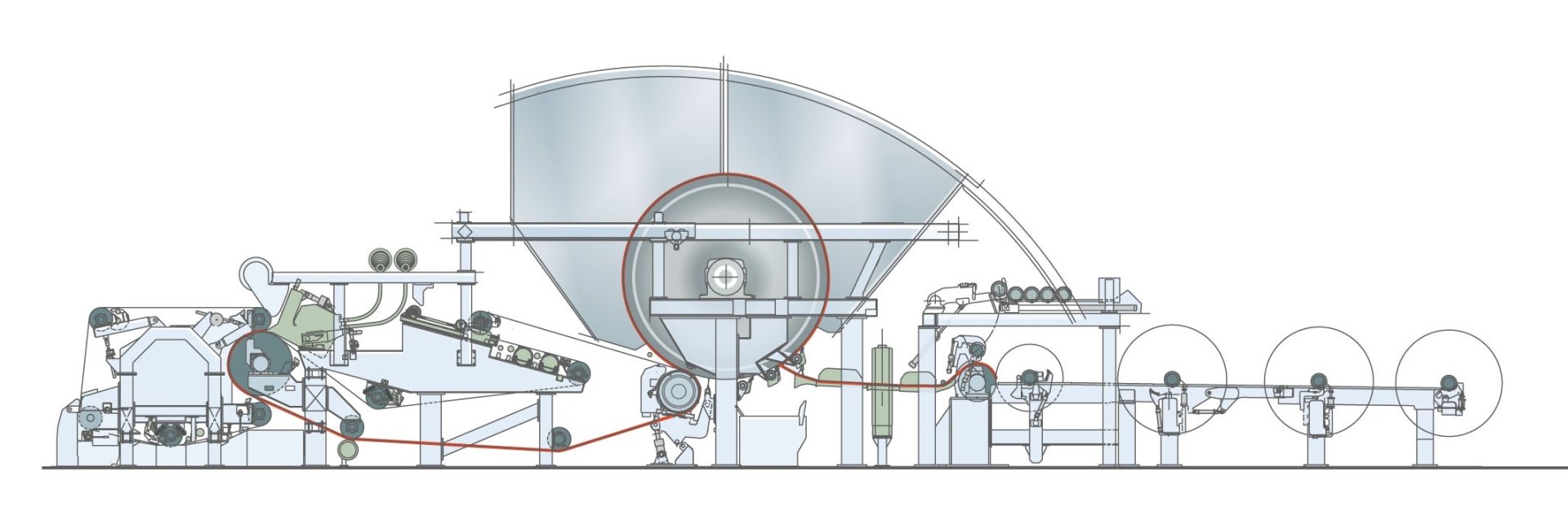

1.The standard crescent-shaped high-speed toilet tissue paper machine mainly includes: hydraulic headbox, former, vacuum roller, Yankee dryer, high-speed hot air hood and paper reel.

◆ Aim and purpose of the tissue machine

1. The ultimate aim of any tissue paper machine is to produce a lightweight sheet of paper that is soft, absorbent and strong enough to fulfill the functions needed, and which can then be converted into finished products which will be accepted by consumers and buyers in the marketplace. These products may include items such as bathroom tissue, paper kitchen towels, facial tissue, handkerchiefs, commercial and industrial wipers and sometimes even items such as medical disposable wraps and garmets.

2. To create this sheet, tissue machines thus designed to evenly distribute a suspension of wood fibers in water into a very thin layer, and then to remove most of the water. The suspension of wood fibers and water, called ‘stock’, usually has an initial composition of around 99.5% water and 0.5% solids, mostly fibers. Finished basis weights of tissue are typically in the range of 13-25 grams/square meter (gsm).

3. The sheet-forming process involves first draining off as much of the water as possible in the forming section, then pressing it out between rolls in the press section, and finally removing the remaining water by heat and drying through the use of thermal energy. Drying is usually done via direct contact of the sheet on the hot Yankee dryer surface, as well as by impinging hot air onto the sheet in the Yankee hood

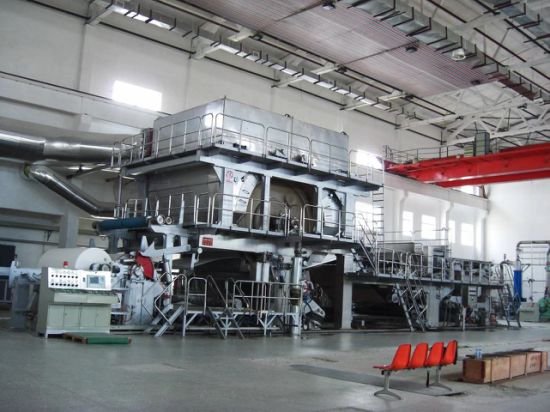

◆ Crescent Toilet Paper Roll Making Machine

2.Parameter of crescent type high speed toilet tissue paper machine.

◆ 2850MM CRESCENT TOILET PAPER MACHINE SPECIFICATIONS

I. Main data

1.1 Paper grade and pulp

Paper grade ： High quality household paper base paper

Quantitative  ： 15-30g/m2

1.2 Paper machine specification data

Capacity ： 20-22 tons/day

Paper width on reel ： 2950mm

Gauge  ： 3900mm

Design speed ： 450 m/min

Working speed ： 300-400 m/min（Big tank speed）

Balance speed ： 500 m/min

Dryness after pressing ： 38%-40%

Dryness of wrinkles ： 94-95%

Dryness of reel ： 94-95%

Paper machine arrangement ：  Left/right phone

1.3 Dryer size (Yankee dryer) ： Ø3000×3250mm

1.4 Roller dynamic balance grade ： G1.6

1.5 Dryer dynamic balance grade ： G4

1.6 Steam requirement ： Yankee cylinder saturated steam 0.5MPa

                                          Saturated steam of hood heater 1.2MPa

1.7 Paper making machine size ： 18000mm(L)*7200mm(W)*6000mm(H)

1.8 Hood type ： Thermal insulation hot air hood, steam heating

1.9 PRELIMINARY TRANSMISSION DATA

1.10 LIST OF SPRINKLER PIPES

1.11 ROLL TYPE LIST
