This machine could make a4 size sheet from big copy paper rolls.Including automatic a4 copy paper ream cutting unit and packaging machine function.
This machine could make a4 size copy paper sheet from big copy paper rolls.Including automatic cutting unit and packaging machine function.
A4 COPY PAPER REAM PACKAGING MACHINE
1.MACHINE INTRODUCTION.
This machine could make a4 size sheet from big copy paper rolls.Including automatic a4 copy paper ream cutting unit and packaging machine function.
Performance and Characteristics：
Adopts pneumatic automatic copy paper roll materials loading system with much easy operation and convenience
Adopts down-up recurrent cutting a4 copy paper with orderly finished products and without water caltrop;meantime,it can be used for horizontal cutting and vertical cutting at one time
It adopts servo motor for controlling constant-length cutting a4 paper reams.
It adopts PLC control, contact screen operation
It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas together, it has the function of easy operation, high precision, good stability, low noise.
This machine has the function of the frequency converter timing device, automatic counting, stop working by alarm ,magnetic powder tension control, can be vertically, adopt blower fan to get rid of waste
It has the functions of high-precision of cutting, high speed,etc . pneumatic structure combined with computer control be adopted for transmission section ,making it become much more steady operation
It has the function of automatic stacking which is in order . Photoelectric auto tracing subtense system
2.MACHINE PARAMETER
| Product name | One roll,Two rolls,Four rolls or Five rolls. Full Automatic A4 paper cutting and packaging machine |
| Maxi width of paper rolls | 1100mm |
| Cutting length | 100~500mm |
| Cutting Speed | 1.5 reams per minute,3 reams per minute,6 reams per minute, 7.5 reams per minute. |
| Paper Grade | High-grade copy paper; High-grade office paper, High grade Free Wood paper etc. |
Paper Weight Range | 60-100g/㎡ |
Machine Speed | 10-200times/min |
Cutting Accuracy | ±0.3mm |
Cutting Condition | No variation of the speed, no break, cut all the paper at one time and need the eligible paper |
Cutting specifications | 210*297mm or a3 ,a5 size etc. |

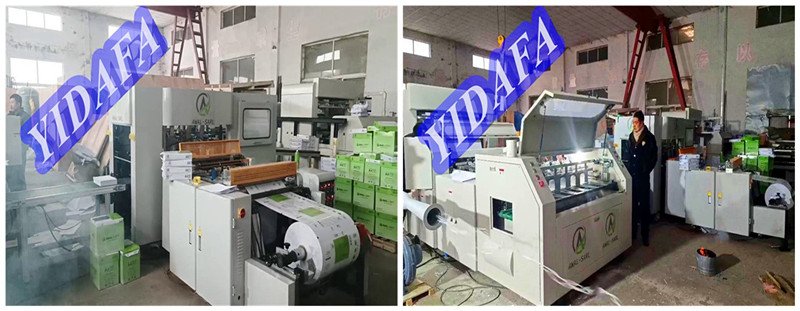

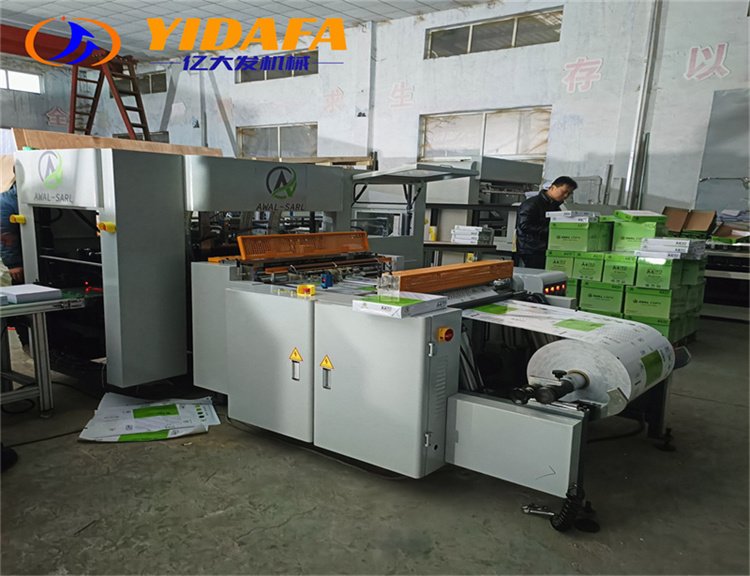

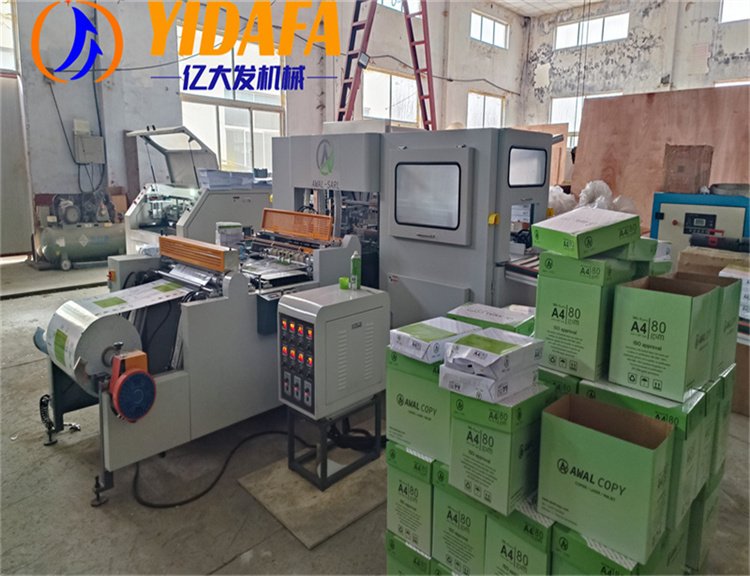

3.DETAILS PICTURE
