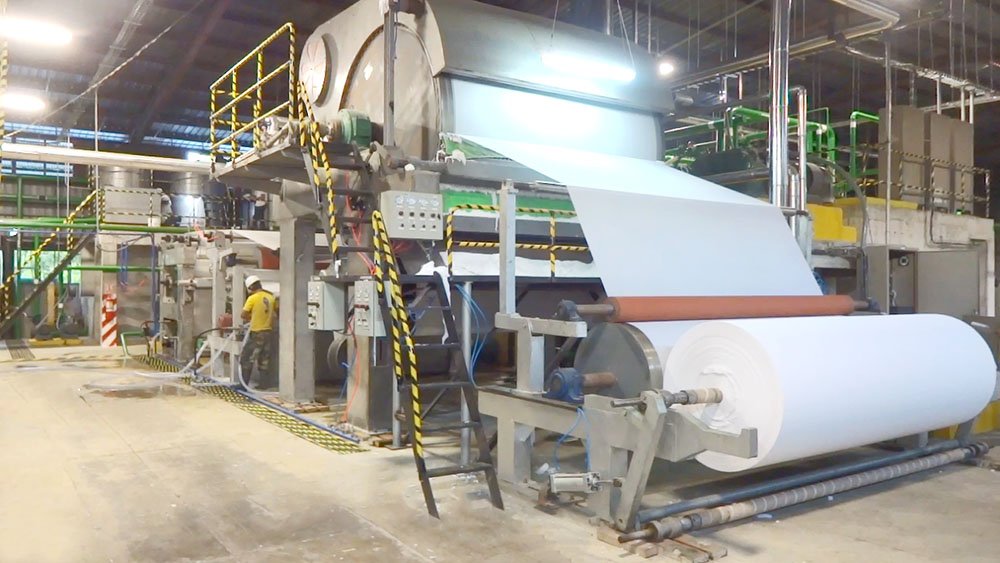

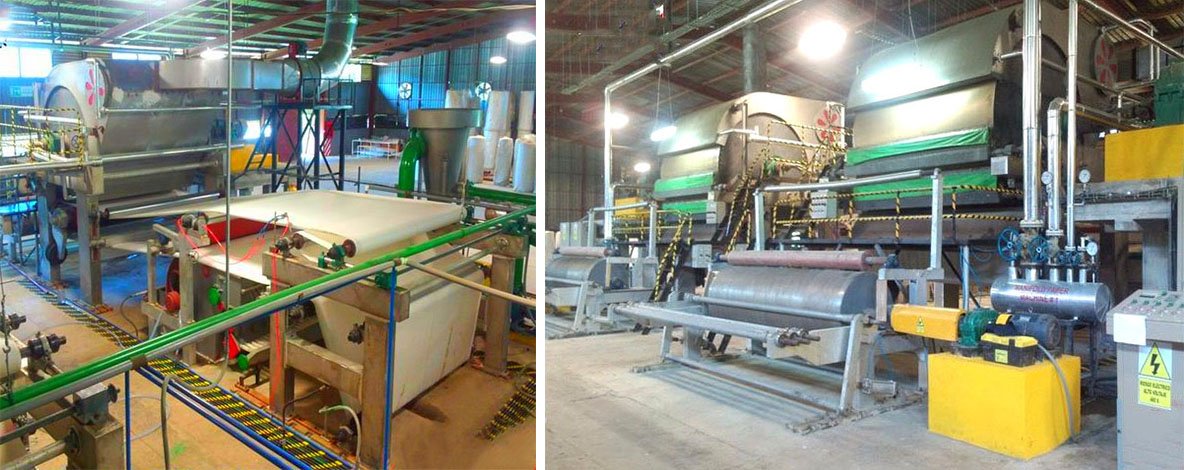

Parent tissue paper roll making machine

This Paper machine is to meet the papermaking requirements of the pulp water suspension by the filter dehydration forming, mechanical extrusion dehydration and drying process then making into paper. The use of raw materials are: waste paper, old newspaper and white waste paper edges and so on. It can produce toilet paper, facial tissue paper, napkin paper, drawing paper and so on. The machine with reliable quality, stable performance, easy operation, energy saving and environmental protection, paper making machine is the ideal product in machinery field.

PRODUCT DETAILS




This Paper machine is to meet the papermaking requirements of the pulp water suspension by the filter dehydration forming, mechanical extrusion dehydration and drying process then making into paper. The use of raw materials are: waste paper, old newspaper and white waste paper edges and so on. It can produce toilet paper, facial tissue paper, napkin paper, drawing paper and so on. The machine with reliable quality, stable performance, easy operation, energy saving and environmental protection, paper making machine is the ideal product in machinery field.

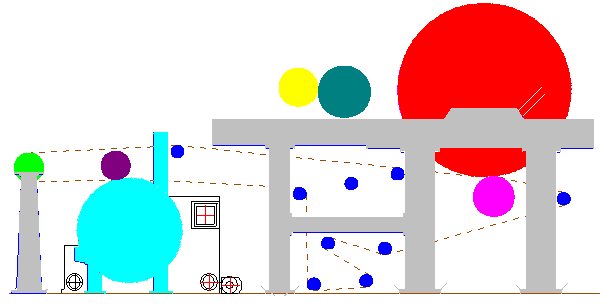

◆ Paper Machine Drawing



Paper making machine technical specification:

1. Main Product:

Toilet paper, napkin paper and drawing and so on

2. Grammage:

15~30g/㎡

3. Equipment form

The inversion of slurry

4. Capacity:

5~5.5 T/24h

5. Raw paper width:

1880-2000mm

6. Design speed:

180m/min

7. Transmission speed:

70-150m/min

8. Dynamic balancing speed:

300m/min

9. Roller balance:

G2.5 class

10. Dryer balance:

C4 class

11. Winding paper roll:

C1.6 class

12. Transmission mode:

Ac motor frequency control of motor speed digital distribution transmission

13. Arrangement mode:

Right or left arrangement(selected by the user)

14. Gauge:

2400mm

15.Large equipment 1

Dryer cylinder:Ø2500mm×1 set

16.Large equipment 2

Cylinder mould:Ø1500 mm×1set


◆ Electric control

No.NameSpecificationQuantityTechnical requirements
1Electric control , counter operation
1Operation counters of transmission point sets starting , stopping ,  href="D:/Youdao/Dict/6.3.69.8341/resultui/frame/javascript:void(0);" taut , run /crawl , accelerate, slow down , emergency stop button or knobs , etc . Equip with ammeter, all sections can separate speed control .


◆ Transmission System

No.NamePowerQuantityTechnical requirements
1Transmission section

AC motor * Electromagnetic speed control transmission
2Transmission section of main engine30Kw1ZLY180 harden reducer
3Winding of paper section5Kw1ZQ250 Gear reducer
4Roots vacuum pump15Kw1ZBK15model
5Total:50Kw
