Tissue Paper Core Making Machine

Tissue paper core making machine.This machine could make spiral paper core,used as inner core in toilet tissue paper rolls.

PRODUCT DETAILS

Tissue paper core making machine.This machine could make spiral paper core,used as inner core in toilet tissue paper rolls.

PRODUCT DETAILS

Tissue Paper Core Making Machine


Tissue paper core making machine.This machine could make spiral paper core,used as inner core in toilet tissue paper rolls.

Usage

Common model, it is used for making tubes for all kind of tape, jumbo roll, chemical fiber, paper cans, etc.

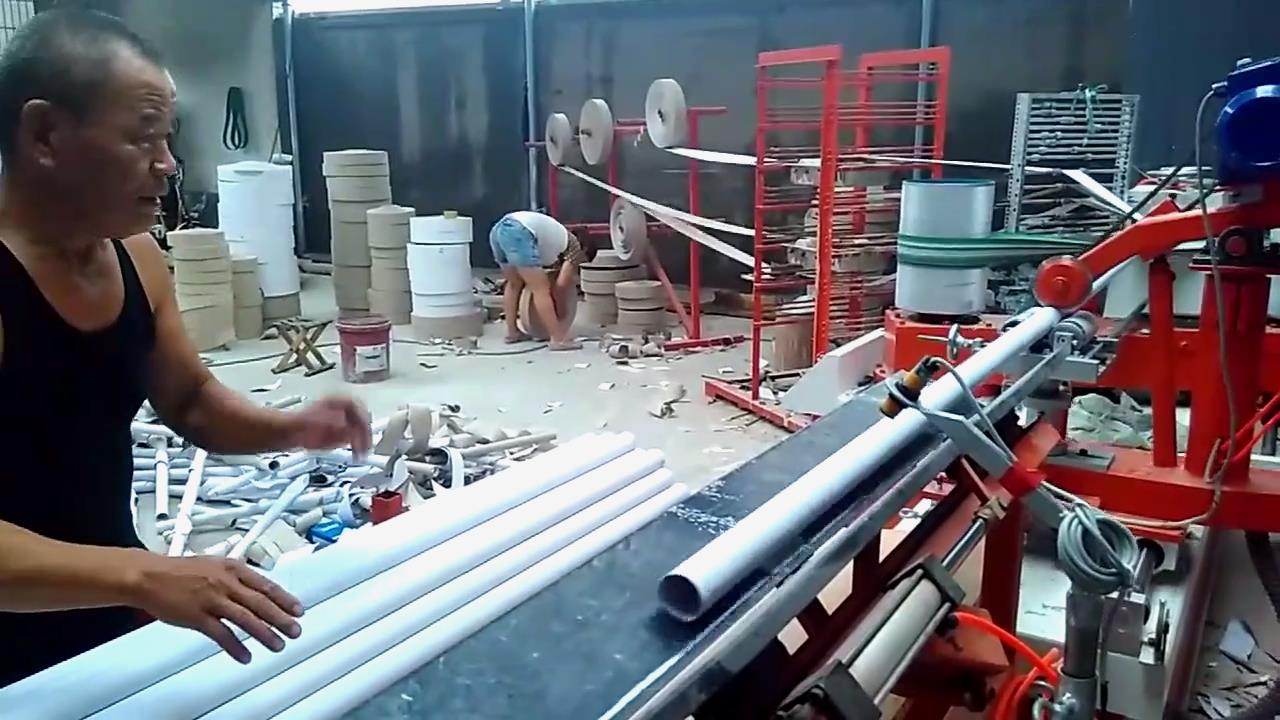

tissue paper core making machine

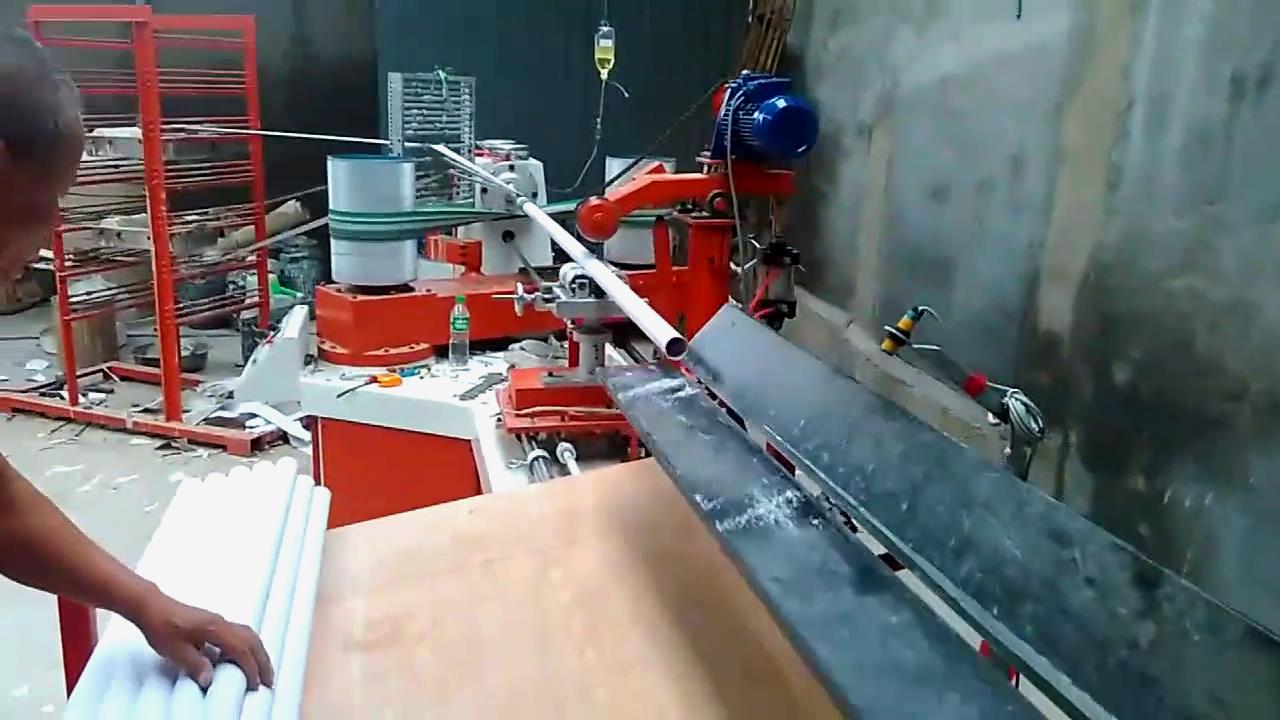

tissue paper core making machine

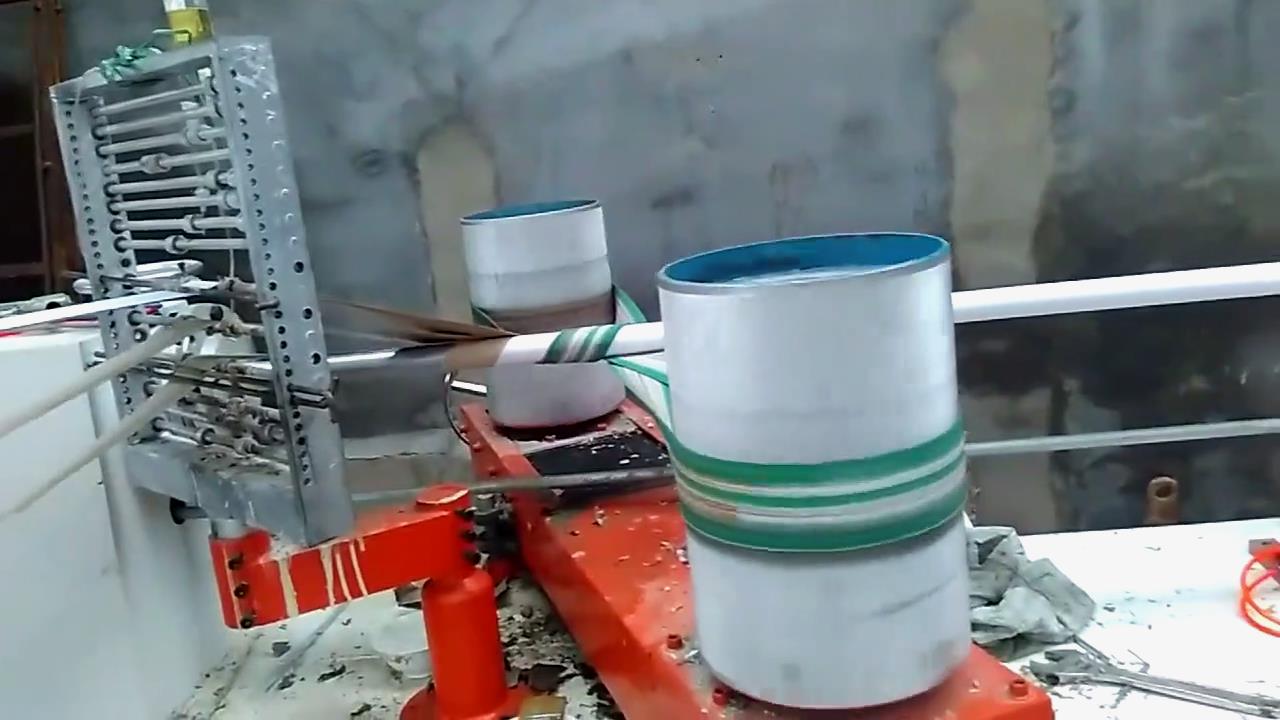

tissue paper core making machine


tissue paper core making machine


tissue paper core making machine



Feature

Cheaper price, high popularity, high performance.

Adopted PLC logic control system.

Main motor is adopt vector type of high torque inverter for speed regulate

Positioning length by photo electricity with auto speed changing function, in order to meet high cutting precision.

Modern electric layout designing for easy and science using, maintaining and repairing.

There is a remote controller for easy operatingto stop or slow down the machine when lacked paper

Low noise driving designing.

Adopt double size gluing and independent stainless steel gluing box, with imported silicone tube

 Machine Parameter

Tube diameter

15-100mm

Number of paper layer

16 layers

Tube max thickness

9mm

Rewinding noses

2

Operator

1-2

Productive speed

3-19m/min

Way of cutting

Pneumatic

Way of gluing

Double sides

Paper shaft type

Crisscross

Way of tube down

Withdraw

Power of mainframe

11kw

Power input

380V3phare4wire 50Hz

Dimension

Size(mm)

MainframeL*W*H

3000*1800*1680 mm

Area spaceL*W

10000*8000mm

Wheel hub diameter

270

Wheel hub height

440

Tread

900-1200

Total weight

2400kg

Driving System

Model of main motor

7.5KW weihai

Mainframe rotate speed

1400r/min

Hub max rotate speed

48r/min

Hub output torque

850N.m

Reductor model

WPO155 hangzhouChina

Model of driving chain

12A*2

Wheel hub drive

2 wheel

Cutting motorstepless speed adjust

A ball

Glue pump

1.5KW gear pump

Screw

China

Slideway

40mm round slideway

Bearing

Haerbin

Control System

PLC controller

Delta DVP-24ES00R2

Edition of program

XW-A3.1

Inverter

7.5KW Sanjing

Driving components

CHNT

Signal components

Omron

Pneumatic components

AIRTAC

Cutting blade control device

Pneumatic

Angle setting motor

Jinda Shanghai

Cutting synchronization control

Jinda Shanghai

Way of fixing length

Infrared
