YIDAFA is a professional Chinese machine manufacturer ,dedicated to the production, manufacturing and sales of a4 paper machines.A4 paper machine is used for making a4 paper reams.
YIDAFA is a professional Chinese machine manufacturer ,dedicated to the production, manufacturing and sales of a4 paper machines.A4 paper machine is used for making a4 paper reams,which always includes a4 paper cutting machine and a4 paper packaging machine.

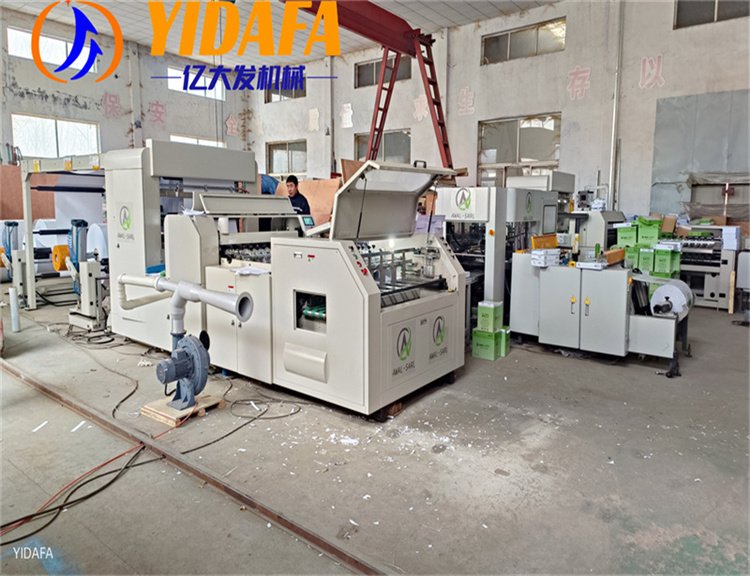

A4 PAPER MACHINE FOR SALE
1.MACHINE DEFINTION
A4 paper is defined by ISO 216 of the International Organization for Standardization, and its specification is 21cm×29.7cm (210mm×297mm). The paper size used by most countries in the world adopts this international standard. This standard was originally incorporated into DIN by the Weimar Republic in 1922 (number DIN 476).A4 paper machine is professionally used for making a4 size paper according to the international standard.
YIDAFA is a professional Chinese machine manufacturer ,dedicated to the production, manufacturing and sales of a4 paper machines.A4 paper machine is used for making a4 paper reams,which always includes a4 paper cutting machine and a4 paper packaging machine.
2.MACHINE CHARACTERISTICS
Performance and Characteristics：
Adopts pneumatic automatic materials loading system with much easy operation and convenience
Adopts down-up recurrent cutting with orderly finished products and without water caltrop;meantime,it can be used for horizontal cutting and vertical cutting at one time
It adopts servo motor for controlling constant-length cutting
It adopts PLC control, contact screen operation
It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas together, it has the function of easy operation, high precision, good stability, low noise.
This machine has the function of the frequency converter timing device, automatic counting, stop working by alarm ,magnetic powder tension control, can be vertically, adopt blower fan to get rid of waste
It has the functions of high-precision of cutting, high speed,etc . pneumatic structure combined with computer control be adopted for transmission section ,making it become much more steady operation
It has the function of automatic stacking which is in order . Photoelectric auto tracing subtense system
3.MACHINE PARAMETER
China Suppliers Automatic
3.
A4 Paper Cutting And Packing Machine
| Product name | One roll,Two rolls,Four rolls or Five rolls. Full Automatic A4 paper cutting and packaging machine |
| Maxi width of paper rolls | 1100mm |
| Cutting length | 100~500mm |
| Cutting Speed | 1.5 reams per minute,3 reams per minute,6 reams per minute, 7.5 reams per minute. |
| Paper Grade | High-grade copy paper; High-grade office paper, High grade Free Wood paper etc. |
Paper Weight Range | 60-100g/㎡ |
Machine Speed | 10-200times/min |
Cutting Accuracy | ±0.3mm |
Cutting Condition | No variation of the speed, no break, cut all the paper at one time and need the eligible paper |
Cutting specifications | 210*297mm or a3 ,a5 size etc. |
4.JUMBO ROLL A4 PAPER MAKING MACHINE

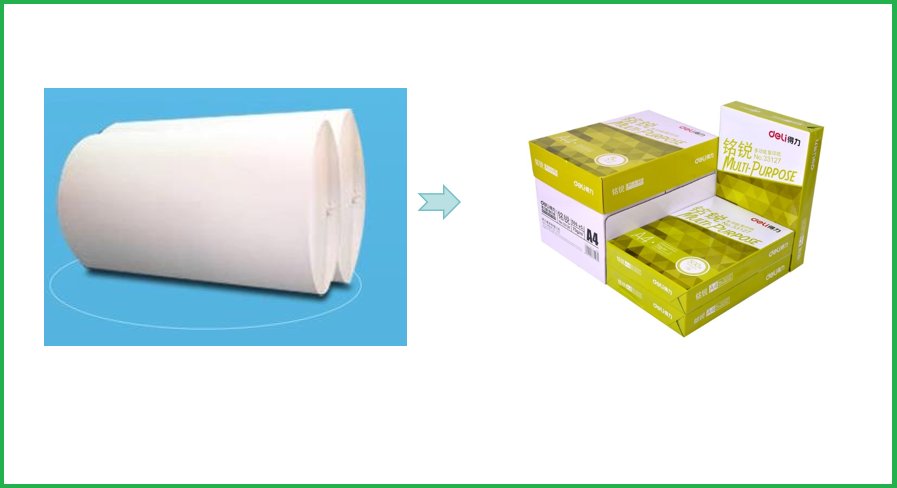

Jumbo roll a4 paper making machine is one complete production line from wood chips or other natural plant to jumbo copy paper rolls.Jumbo copy paper rolls could be processed into a4 paper on a4 paper cutting and packing machine.
YIDAFA has rich experience in wood pulp making and a4 paper roll equipment.
